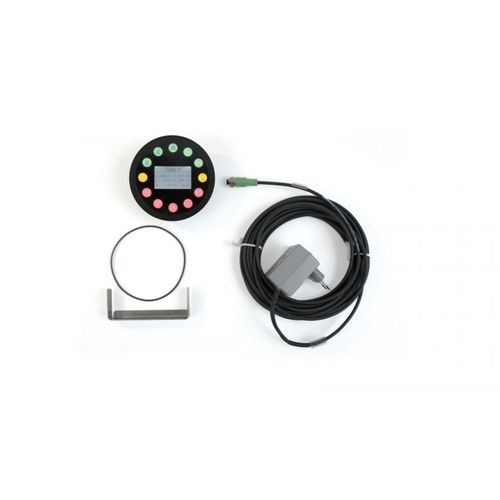

LED display graphic128 x 64RGB
Add to favorites
Compare this product
Characteristics
- Screen type
- LED
- Type
- graphic
- Format
- 128 x 64
- Interface
- RGB, CANbus
- Protection level
- IP67
- Height
33 mm
(1.2992 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Customized layout of foil
Graphic display 128 × 64 dots with white backlight (optionally RGB backlight)
12 superbright LEDs for illumination of the symbols
Metal installation bracket for very easy mounting in 102 mm hole
Sealing
CAN interface
General technical data
Housing - PA6.6 / 30% GF
Supply voltage - 7.0.. 60 V DC
Power consumption - 300 mA @ 12 V DC (with 12 illuminated LEDs)
Weight - 170 g
Size - 116 × 33 mm (diameter x height)
Installation hole - 102 mm
