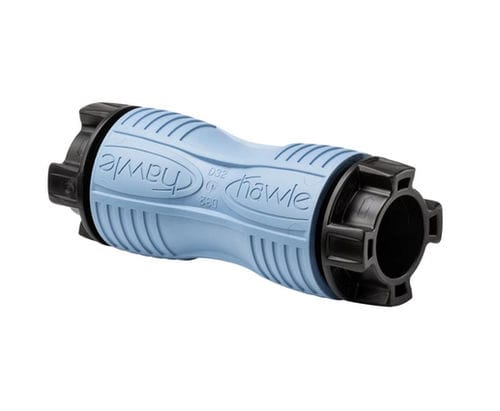

Round tube connector 6320HF

Hawle FIT pipe connections feature an impressive, unique design. Hawle FIT comes fully assembled, enabling it to be installed quickly, efficiently and without errors. The advanced development of the tried-and-tested ISO fitting is therefore operational from the very first moment. Installation and dismantling are performed easily with no special tools required. The Hawle FIT range is also a sustainable solution as the connection can be reused. Features Hawle-FIT: The new generation of fitting pipes Hawle-FIT has been designed to connect PE pipes with an outside diameter of d 25 to 63 and a working pressure of up to 16 bar Installation and dismantling is simply performed with no special tools required The service life of the Hawle-FIT is guaranteed by the use of high-quality polymer materials; the clamping nut as functional carrier is very stable through its unique construction The special clamp toothing (no continuous groove) reduces the impact force on the pipe. This significantly enhances the service life of the pipe The stainless steel reinforcing ring increases the strength of the fitting with internal thread outlets Assembly-ready supply: no screwing required before inserting the pipe Standards Hawle-FIT: For PE-pipes according to EN 12201 and DIN 8074 | to PN 16; up to 30° C medium temperature, for potable water PE 80: SDR 7,4 — SDR 17,6 PE 100: SDR 11 PE 100: SDR 17 (support liner No. 6021 is required for meeting the standards)
