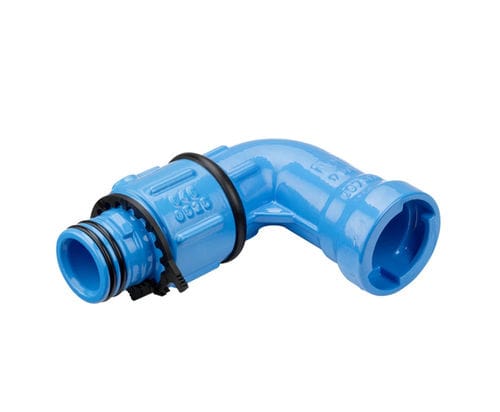

Hydraulic fitting 6469socket90° angleDIN
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- socket
- Configuration
- 90° angle
- Norms
- ISO, DIN
- Material
- iron, epoxy
- Diameter
46 mm
(1.811 in)- Operating pressure
16 bar
(232.06 psi)
Description
The threadless, restraint jointing system for the service connections made of
ductile iron, epoxy powder coated
Integrated on pipe saddles, service valves and Fittings
Simple installation:
Push into socket - rotate for 90° - pull out - fit the snap ring
ZAK socket d 34 max. drilling Ø 25
ISO push-fit for PE pipes Ø 20 - Ø 50 according to EN 12201 and DIN 8074
| up to PN 16. Suitable up to 30° C medium temperature
ZAK socket d 46 max. drilling Ø 35
ISO push-fit for PE pipes Ø 32 - Ø 63 according to EN 12201 and DIN 8074
| up to PN 16. Suitable up to 30° C medium temperature
ZAK socket d 69 max. drilling Ø 40/50
ISO push-fit for PE pipes Ø 50 - Ø 63 according to EN 12201 and DIN 8074
| up to PN 16. Suitable up to 30° C medium temperature
