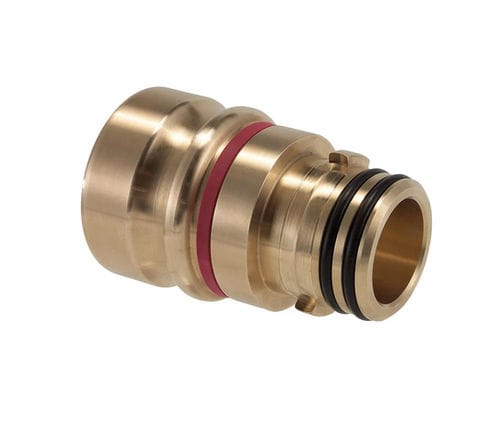

Pipe adapter 6164

hydraulicbrassepoxy

The ZAK system from Hawle enables tapping saddles, valves and fittings to be connected quickly and easily. The so-called "bayonet connection" is simple and can be installed in seconds and disassembled and reused just as quickly if necessary. Producing reliable threadless connections for water and sewage pipeline valves and fittings has never been easier. They are flexible, 100% leak-proof and corrosion-resistant even at 16 bar pressure, making them exceptionally durable. Features ZAK: The threadless, restraint jointing system for the service connections made of ductile iron, epoxy powder coated Integrated on pipe saddles, service valves and Fittings Simple installation: Push into socket - rotate for 90° - pull out - fit the snap ring Learn more about the Hawle ZAK system! Standards ZAK: ZAK socket d 34 max. drilling Ø 25: ISO push-fit for PE pipes Ø 20 - Ø 50 according to EN 12201 and DIN 8074 up to PN 16. Suitable up to 30° C medium temperature ZAK socket d 46 max. drilling Ø 35: ISO push-fit for PE pipes Ø 32 - Ø 63 according to EN 12201 and DIN 8074 up to PN 16. Suitable up to 30° C medium temperature ZAK socket d 69 max. drilling Ø 40/50: ISO push-fit for PE pipes Ø 50 - Ø 63 according to EN 12201 and DIN 8074 up to PN 16. Suitable up to 30° C medium temperature
