Rail-mounted damper MDS

vibrationanti-vibrationmechanical

The range of vibration damping elements includes damping rods, flanges, and rings. They reliably lower noise levels and reduce vibrations.

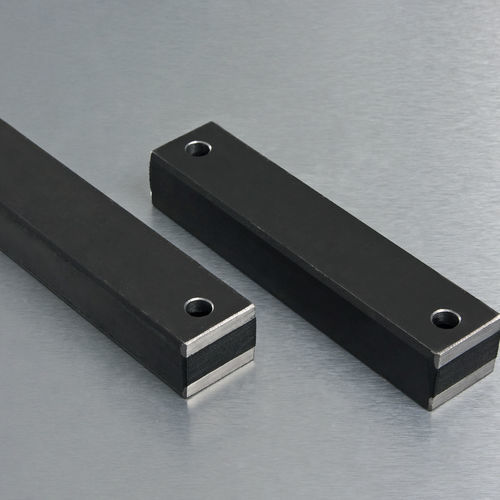

Damping rods

Technical specifications

• Lower noise levels and dampen vibrations
• Finished for IEC motors/electric motors IMB 35 (MDS)
• NEMA motors, PTFL foot brackets (PTFL-DS) and PTFS foot brackets (PTFS-DS)
• Available from stock
• Special lengths or designs available upon request
• Material: rubber/steel

Damping flanges

Technical specifications

• HBE damping flanges are applied in connection with HBE bellhousings or pump brackets between hydraulic pumps and E-motors
• They consist of two aluminium components, which are connected to each other by a moulded-on rubber coating (perbunan-NBR) without metallic contact
• The materials applied are resistant to mineral oils and are suitable for working temperatures up to + 80°C, temporary +100°C

Damping rings

Technical specifications

• For application between bellhousing and tank vertically or horizontally
• Damping rings consist of two vulcanised perbunan coated combined aluminium rings
• Application: mineral oil up to max. +80°C
• Noise reduction: approx. 3 – 5 dB (A)
• Sealing lips moulded-on, no additional sealing necessary
