Metal mounting bracket

for motorsheavy dutyindustrial

Overview
We offer pump supports in a wide range of sizes and designs in accordance with the VDMA guideline and motor standards IEC and US NEMA. Matching accessories are available to meet different installation and operational requirements.

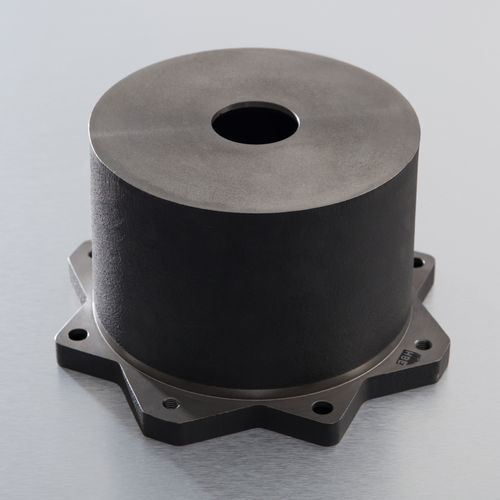

Pump supports
HBE pump supports are available in aluminium, gray cast iron, steel and stainless steel. Special variants for industrial motors complete the range. A P+Calculator assists in selecting the appropriate pump support.

Foot flanges
HBE foot flanges reduce the number of motor variants to be kept in stock. Foot flanges are supplied in light and heavy series and, besides aluminium, also in steel designs.

Damping elements
The range includes damping rails, damping flanges and damping rings. These components reduce vibration and reliably lower noise levels.

Mounting flanges
Our mounting flanges enable removal and installation of the drive unit including the pressure line without dismantling the tank cover, simplifying maintenance tasks.

Seals
Rubber-cork and paper seals are available for sealing the pump support (e.g. for V1 design) as well as additional seals to the pump. Seals are also available for mounting flanges.

Pump supports with integrated oil cooler (PTÖK)
Pump supports with integrated oil-air cooler (PTÖK series) provide high cooling performance at low sound pressure levels in a compact installation space. In most cases no external cooling circuit is required.

Downloads & Documentation
Product catalogs and assembly instructions are available as documents containing detailed information on versions and options.

Features / Technical specifications

• Materials: aluminium, gray cast iron, steel, stainless steel
• Sizes and designs: various executions according to VDMA guideline
• Motor standards: IEC and US NEMA compliant
• Options: special variants for industrial motors
• Accessories: foot flanges (light and heavy), mounting flanges, damping elements (rails, flanges, rings), seals (rubber-cork, paper)
• Cooling variants: pump supports with integrated oil-air cooler (PTÖK) without external cooling circuit
