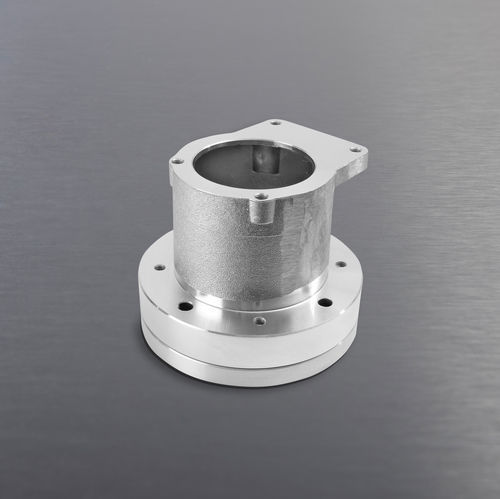

Pump bellhousing PE

for enginealuminum

Bellhousings from HBE serve as connecting elements for centering between motor and hydraulic pump.

The bellhousings are available in aluminum, gray cast iron, steel, and stainless steel. Custom designs for industral engines complete the range of products on offer.

We provide bellhousings in a wide variety of sizes and designscomplying with VDMA regulations, the IEC standard on motors or the US NEMA standard with all corresponding accessories.

Technical specifications

• For all standard external gear pumps
• Available with a damping flange

With damping flange

• Noise reduction of the pump/motor unit of up to 5 dB(A) possible, depending on the pump design
• Standard bellhousing made of aluminium, damping flange made of aluminium / perbunan vulcanised
• No metallic connection
• Horizontal and vertical application possible
• Resistance: mineral oil, max. 80°C
