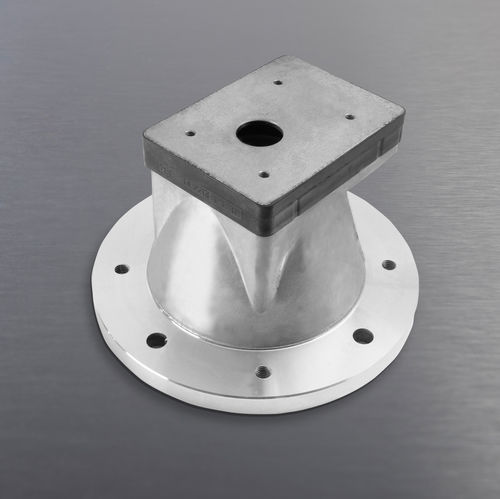

Pump bellhousing PE

for enginealuminumstainless steel

Overview
We supply pump supports in a wide range of sizes and configurations in accordance with VDMA guidelines and motor standards (IEC and US NEMA), together with all matching accessories.

Products and accessories (excerpt)

• Pump supports: HBE pump supports are available in aluminium, grey cast iron, steel and stainless steel. Special designs for industrial motors complete the product range. Our P+Calculator helps select the appropriate pump support.

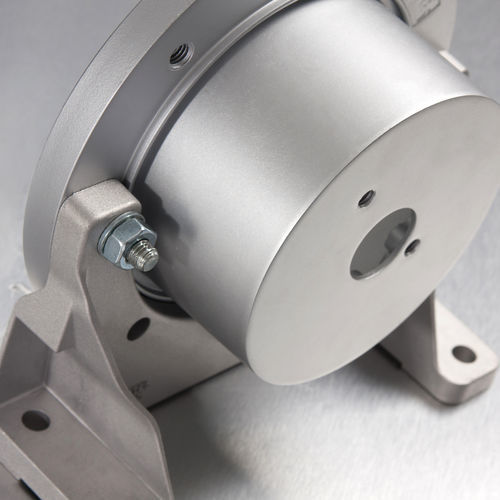

• Foot flanges: HBE foot flanges reduce motor inventory to a single configuration. Foot flanges are available in light and heavy series; aluminium and steel versions are offered.
• Damping elements: Range includes damping rails, damping flanges and damping rings to reduce noise level and vibrations.
• Assembly flanges: Allow removal and installation of the drive unit including the pressure line without dismantling the tank cover.
• Gaskets: Cork-rubber or paper gaskets for sealing the pump support in V1 design and for additional sealing to the pump; also available for assembly flanges.
• Pump supports with integrated oil cooler (PTÖK series): Deliver high cooling performance with low sound pressure level in a compact footprint; no additional cooling circuit required.

Available downloads (listing only)

• Montageanleitung Pumpenträger — 05/2025 — 0.69 MB — Language: DE
• HBE Gesamtkatalog — 07/2025 — 12.84 MB — Language: DE
• Pumpenträger und Zubehör (Katalog) — 07/2025 — 2.04 MB — Language: DE

Characteristics / technical specifications

• Materials of pump supports: aluminium, grey cast iron, steel, stainless steel
• Standards: VDMA guideline, IEC motor standard, US NEMA standard (depending on motor/application)
• Foot flanges: light and heavy series; aluminium and steel designs
• Damping elements: damping rails, damping flanges, damping rings (for noise and vibration reduction)
• Assembly flanges: enable removal of the drive unit including the pressure line without dismantling the tank cover
• Gasket types: cork-rubber and paper gaskets (for V1 design and assembly flanges)
• PTO/PTÖK solutions: pump supports with integrated oil-air cooler (high cooling performance, low noise, compact installation)
• Selection aid: HBE P+Calculator for correct pump support selection
