Water filter m-swipe
basketstrainerwire mesh

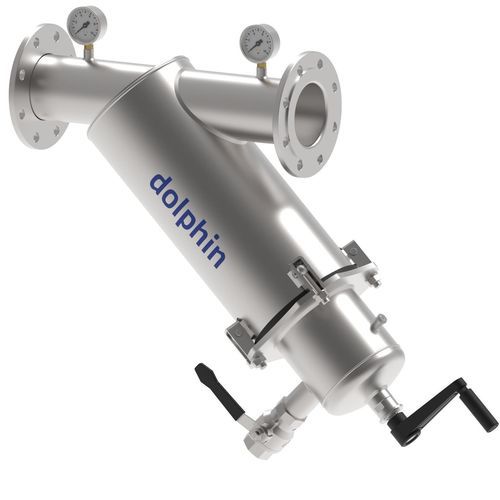

Water filter - m-swipe - Heation AB - basket / strainer / wire mesh
Water filter - m-swipe - Heation AB - basket / strainer / wire mesh
Water filter - m-swipe - Heation AB - basket / strainer / wire mesh - image - 2
Add to favorites
Compare this product
Go to the Heation AB website for more information

Characteristics

Designed for
water
Filtration element
strainer, basket, wire mesh
Filtration method
pressure
Applications
industrial, process, for the food industry, for HVAC, irrigation, for pipelines, for pipes, for HVAC installations
Material
stainless steel
Mounting
threaded, flange, thread connection, skid-mounted, on skid
Cleaning
easy cleaning
Fluid specification
process water, liquid coolant
Other characteristics
compact, in-line
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 16 bar
(232.06 psi)

Filtration size

Min.: 10 µm

Max.: 5,000 µm

Flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 550 m³/h
(19,423.067 ft³/h)

Fluid temperature

Min.: 0 °C
(32 °F)

Max.: 90 °C
(194 °F)

Filtration surface

Min.: 1,500 cm²
(232.5 in²)

Max.: 7,400 cm²
(1,147 in²)

Description

m-swipe is a mesh filter which offers a convenient and efficient cleaning system. With a manual brush cleaning system, the operator can effortlessly clean the filter screen in just a matter of seconds, without the need to open the lid. The vessel and cleaning system are constructed entirely from stainless steel and equipped with nylon brushes, making the filter highly durable and requiring minimal maintenance. m-swipe is particularly well-suited for treating water that contains non-colloidal suspended solids. It is commonly used in well-water, canals, rivers, and industrial settings. To accommodate various installation configurations, the filter is offered in two different design shapes, Y and L.
