Water filter m-phinbasketstrainerwire mesh
Add to favorites
Compare this product
Characteristics
- Designed for
- water
- Filtration element
- strainer, basket, wire mesh
- Filtration method
- pressure
- Applications
- coarse pre-filtration, industrial, process, for aquaculture, for the food industry, for chemical applications, for water treatment, for HVAC, irrigation, for pipelines, for pipes, for cooling towers, for HVAC installations
- Material
- stainless steel
- Mounting
- threaded, flange, thread connection, skid-mounted, on skid
- Cleaning
- easy cleaning
- Fluid specification
- process water, for potable water
- Other characteristics
- in-line, semi-automatic
- Operating pressure
Max.: 16 bar
(232.06 psi)Min.: 0 bar
(0 psi)- Filtration size
Max.: 5,000 µm
Min.: 10 µm
- Flow
Max.: 400 m³/h
(14,125.867 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)- Filtration surface
Max.: 5,400 cm²
(837 in²)Min.: 1,500 cm²
(232.5 in²)
Description
Description
m-phin is a manually-cleaned stainless steel mesh filter with an adaptive suction pad cleaning system that allows the filter cartridge to be cleaned easily without interrupting filtration. It is suited for treating water containing suspended solids, including colloidal particles, and is used across industrial processes such as evaporative towers, heat exchangers, aquaculture, spray nozzle protection and as pre-filtration for UF and RO systems.
Design data
Max flow rate [m3/h] : 400
Design pressure [bar] : PN10 (PN16 available by request)
Max temperature [°C] : 80
Salinity [TDS] : <10.000 ppm
pH range : 3 - 9
Design code : PED 68/2014/EU
Material
Filter housing : Stainless steel AISI 304 / AISI 316
Gasket : EPDM*
Drain valve : AISI 316 disc with EPDM liner
Pressure gauges : Stainless steel AISI 304 / AISI 316
Surface finish : Micro shot peening and passivation
* Certified for the following European Drinking Water regulations: UBA, DVGW-standard W-270, WRAS and ACS.
Notes

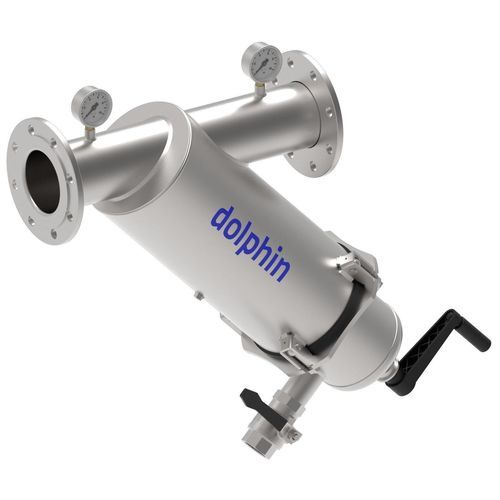

Image for illustration purposes only.
Characteristics / technical specifications
m-phin is a manually-cleaned stainless steel mesh filter with an adaptive suction pad cleaning system that allows the filter cartridge to be cleaned easily without interrupting filtration. It is suited for treating water containing suspended solids, including colloidal particles, and is used across industrial processes such as evaporative towers, heat exchangers, aquaculture, spray nozzle protection and as pre-filtration for UF and RO systems.
Design data
Max flow rate [m3/h] : 400
Design pressure [bar] : PN10 (PN16 available by request)
Max temperature [°C] : 80
Salinity [TDS] : <10.000 ppm
pH range : 3 - 9
Design code : PED 68/2014/EU
Material
Filter housing : Stainless steel AISI 304 / AISI 316
Gasket : EPDM*
Drain valve : AISI 316 disc with EPDM liner
Pressure gauges : Stainless steel AISI 304 / AISI 316
Surface finish : Micro shot peening and passivation
* Certified for the following European Drinking Water regulations: UBA, DVGW-standard W-270, WRAS and ACS.
Notes
Image for illustration purposes only.
Characteristics / technical specifications
- Product name: m-phin
- Type: manually-cleaned stainless steel mesh filter with adaptive suction pad cleaning system
- Applications: evaporative towers, heat exchangers, aquaculture, spray nozzle protection, pre-filtration for UF and RO
- Available configurations: Y, L and O
- Max flow rate: 400 m3/h
- Design pressure: PN10 (PN16 available by request)
- Max temperature: 80 °C
- Salinity (TDS): <10.000 ppm
- pH range: 3 - 9
- Design code: PED 68/2014/EU
- Filter housing: Stainless steel AISI 304 / AISI 316
- Gasket: EPDM (certified for European Drinking Water regulations)
- Drain valve: AISI 316 disc with EPDM liner
- Pressure gauges: Stainless steel AISI 304 / AISI 316
- Surface finish: Micro shot peening and passivation
