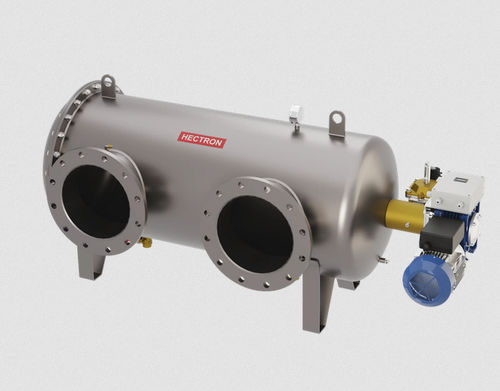

Water filter AG400 series

strainerpressureindustrial

Versatile automatic filters, Hectron AG range filters are available with filtration thresholds from 0.5 to 500 microns. The suction-ramp washing system offers high efficiency with low water consumption. The cleaning system is triggered by measuring the pressure difference between the upstream and downstream; the cleaning frequency automatically adjusts according to the water load. These models are supplied ready to use, with an automatic control system. The AG400 is also available in a vertical version, with numerous variations and options. Available versions 316L Stainless Steel: All filter parts are either made of plastic or 316L stainless steel. Marine: The body is made of Rilsan-coated 316 stainless steel, with water-contact parts in Duplex stainless steel or plastic. Options ACS: ACS certified version (Sanitary Conformity Certificate) For use on potable water networks PN10: Maximum operating pressure: 10 bar A suction pressure limiter automatically regulates the pressure in the washing manifold. 90°C: Maximum water temperature: 90°C Electrical components thermally insulated from the casing IP65: Enhanced sealing on the electrical components
