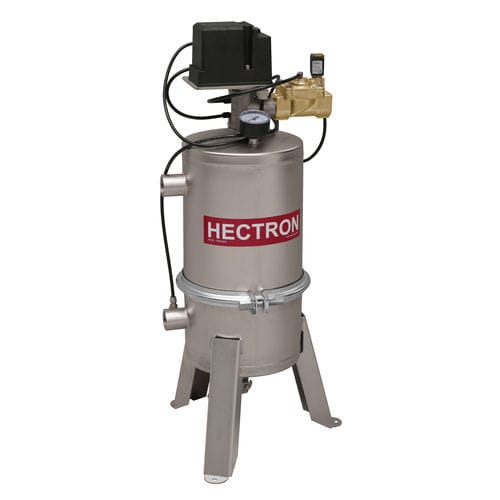

Water filter AG100strainerpressureindustrial
Add to favorites
Compare this product
Characteristics
- Designed for
- water
- Filtration element
- strainer
- Filtration method
- pressure
- Applications
- industrial, for water treatment, safety, for cooling towers, for boreholes
- Material
- stainless steel
- Mounting
- threaded
- Cleaning
- backwash, self-cleaning
- Fluid specification
- process water, for raw water, for rinse water, for potable water
- Other characteristics
- automatic
- Operating pressure
Max.: 5 bar
(72.519 psi)Min.: 2 bar
(29.008 psi)- Filtration size
Max.: 200 µm
Min.: 2 µm
- Flow
Max.: 12 m³/h
(423.776 ft³/h)Min.: 4 m³/h
(141.259 ft³/h)
Description
Versatile automatic filters, Hectron AG range filters are available with filtration thresholds from 0.5 to 500 microns. The suction-ramp washing system offers high efficiency with low water consumption.
The cleaning system is triggered by measuring the pressure difference between the upstream and downstream; the cleaning frequency automatically adjusts according to the water load.
These models are supplied ready to use, with an automatic control system.
Derived from the range for private users, the AG 100 Industry is fitted with a control box with indicator lights and a cycle counter. It is also possible to have feedback for supervision.
Available versions
The Ag 100 industry is also available in a 1”1/4 version.
Catalogs
AG RANGE
6 Pages
