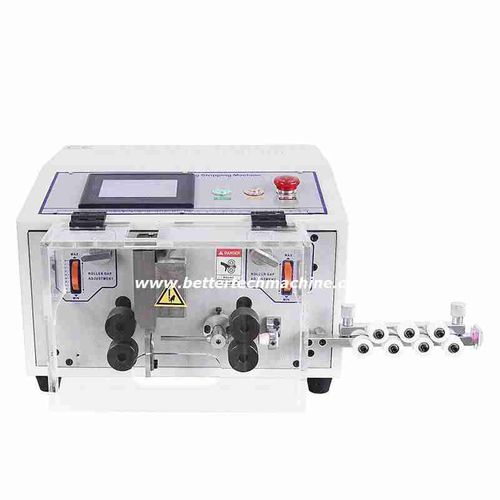

Wire cutting and stripping machine JWD-WSD4E

bladeprogrammableautomatic

The automatic wire cutting and stripping machine JWD-WSD4E is suitable for thick wires with cross section area 0.1 – 8mm² • The computerized automatic wire cutting and stripping machine is programmable and is able to realize batch production, JWD-WSD4E can set count and show the real-time finished number on the touch screen. • JWD-WSD4E is designed for 0.1 – 8mm² electric wires(PVC wire, fiberglass wire, silicone wire, PTFE wire ), it can quickly finish one-sided wire stripping and two-sided wire stripping due to the high speed steel blade. • This wire cutting and stripping machine support full stripping, partial stripping and mid stripping. • Stripping length: Front end 0 – 30mm; Tail end 0 – 15mm; if your project has larger stripping length, please use JWD-WSD4JE or JWD-WSD4JE2. • Optional: wire straightener, straightener protection cover • Wire types : PVC cable, Teflon wire, silicone wire, glassfiber wire • Output : 3000-5000pcs/h (when cutting length=100mm) • Cross Section area : 0.1 – 8mm² • Display : English /Chinese LCD • Stripping length : Front end 0 – 30mm; Tail end 0 – 15mm • Conduit diameter Max. : ∅10mm • Function : cable wire cutting and stripping • Cutting length : 1mm – 10000mm • Cutting tolerance : ±0.002 x cutting length • Amount of partial-stripping : 16 • Blade material : Imported high-speed steel • Drive mode : Four wheel (Stepper motor, each step forward 0.1mm) • Rate Power : 300W • Power supply : 220V/110V 60Hz/50Hz • Dimension(L×W×H) : 420mm×390mm×260mm • Weight : 27kg • Optional : Wire straightener, Straightener protection cover :
