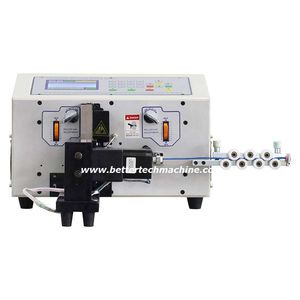

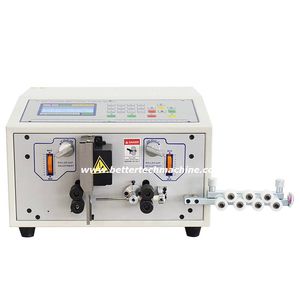

Cable cutting and stripping machine JWD-WSE330Y

bladeautomaticelectric

This automated cable cutting and stripping machine is able to full strip and half strip outer cable jacket. JWD-WSE330Y is ideal for sheathed cable whose maximum cross section area upto 30mm². It is electric driving and especially suitable for long sheath stripping, widely applied in processing cable and wire harness for automobile industry and new energy industry. • This automated cable cutting and stripping machine JWD-WSE330Y with the straightening wire unit, it uses the combination of straightener and wire conveyor with belt to ensure the quality of cutting, conveyor belt wire to reduce the indentation of the finished product. • Adopting LCD touch display, wide range of cutting wires, 1mm² to 30mm² cable are avalable. • The cutting tool holder adopts the servo motor screw method, which is more stable and more accurate in size when stripping thick wires. • wire cutting and stripping mchine is controlled by a microcomputer, and the ARM high-speed processor can store hundreds of pieces of information, which can be invoked sensitively at any time. • Output : 2000pcs/h • Wire types : Electric wire, PVC sheathed Cable, Teflon sheathed cable, power cable and other • Display : LCD screen • Operation : by touch screen • Blade material : High speed steel • Cutting Length : 1mm-99999mm • Cutting Tolerance : ≤0.002×cutting length • Conduit dia. max. : Ф16mm • Cross section area : 1-30 sqmm • Function : Half strip, full strip, double-layer strip, etc. • Stripping length : Front end stripping length 1~ 190mm, Tail end stripping length 1~80mm • Front end half stripping length 1~ 1500mm, Tail end half stripping length 1~500mm • Driving mode : 16 wheel
