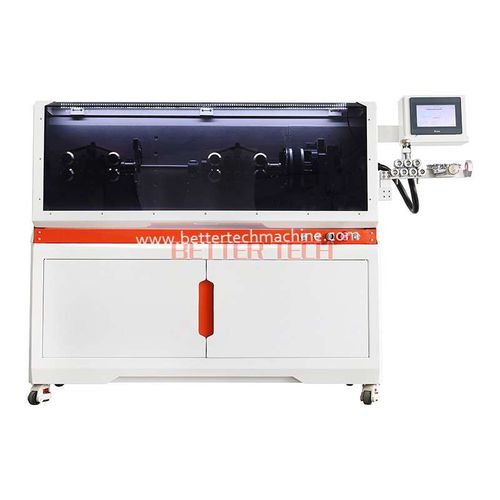

Cable stripping machine JWD-WSA1-X612rotary bladeautomatic
Add to favorites
Compare this product
Characteristics
- Product to be stripped
- cable
- Technology
- rotary blade
- Other characteristics
- automatic
- Diameter
30 mm
(1.18 in)
Description
New Energy Cable Rotary Stripping Machine
• Cross sectiona area max : 6-120mm²
• Efficiency : 2000pcs/h
• Tolerance : 0.002×cutting length
• Stripping length : front full stripping length 1-300mm
• front half stripping length 1-1000mm
• End full stripping length 1-150mm
• End half stripping length 1-500mm
• Drive mode : 32Wheel
• Rotary blade material : High speed steel/tungsten steel
• Rotary Cutting drive : Servo motor
• Optional : Table / Robotic arm/ drive motor
• Test sample before order : Support
• Power supply : 220V/110V 50/60HZ
• Air pressure : 0.5-0.8Mpa
• Dimension : 1400mm×720mm×1460mm
• Machine weight : 300kg
VIDEO
