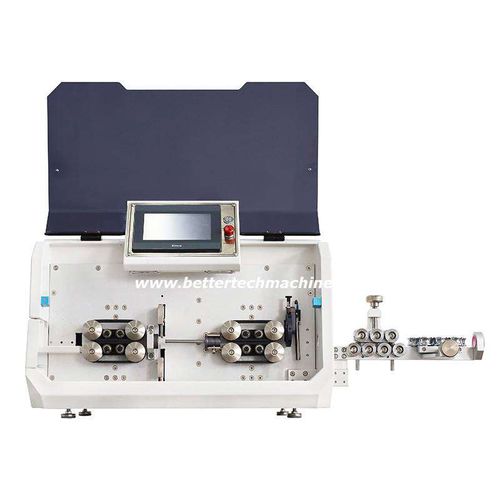

Cable cutting machine JWD-WSA1615Q

knifefor metalfor plastics

Automatic wire cutting machine JWD-WSA1615Q is equipped with servo motor and stepping motor to ensure high precisely cut the wire, cable, flat wire, soft copper bar, protective sleeve and other PVC hoses. • Cutting range: 1 ~ 150mm²（AWG16 ~ 300MCM) • One side stripping length: 1- 800MM • Cutting Speed: 1800 pcs/h (cutting speed varies according to the target cutting length) • Application: cable, round wire, flat wire, soft copper bar, protective sleeve and PVC hoses. • Applicable wire size : 1mm²- 150mm² • Function : Automatic cutting and one side stripping for wire, cable, flat wire, soft copper bar, protective sleeve, and other PVC hose • Display : 7 inch touch screen • Cutting length : 1mm-9999999.99MM • Cutting tolerance : 0.002× Cutting Length(wire/cable); 0.002× Cutting Length(flexible hose) • Blade material : Imported high speed steel • Stripping length : one side stripping: 1- 800MM • Conduit OD Max. : Φ33MM • Feed wire method : Belt conveyor wire, 16 wheel drive • Power : 1.6KW • Power supply : 200V 50Hz 18A(Allowable minimum current 10A) • Cut system : Servo motor • Feed system : Stepper motor(optional: servomotor) • Remark : collecting clamp, collecting robot arm, rewinding rack • Special : Peeling pressure, front end full stripping catheter, automatic line detection; special cable support customization
