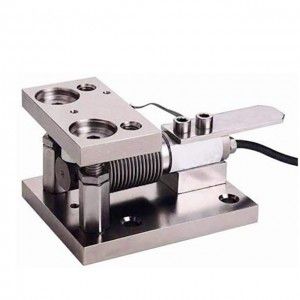

Tank weighing module for beam load cells
BRANS supplies the Compression weighing module for max. capacities from 50 kg to 200 kg and 500 kg. The weigh module is designed mainly for use in tank weighing applications.
This weighing module is fitted with lateral stay rods.
An integral over-load stop is also fitted. The modules consist of a base plate, the load cell complete with load application elements, and the cover plate. A pendulum support is used for the load application, providing compensation for horizontal load shifts (such as may occur as a result of thermal strain, for example). The weighing module is pre-assembled and a grounding cable is supplied.
50 kg / 100 kg / 200 kg / 500 kg
Equipped with the bellow beam load cells
With overload stop and Transverse stay rod
Compact installation at minimum height
Two versions available: Galvanized material or Stainless steel
Self-restoring due to pendle bearing
With lift-off device and lifting device
