Clamping screw K1473 series
knurled cylindrical headTorxsteel

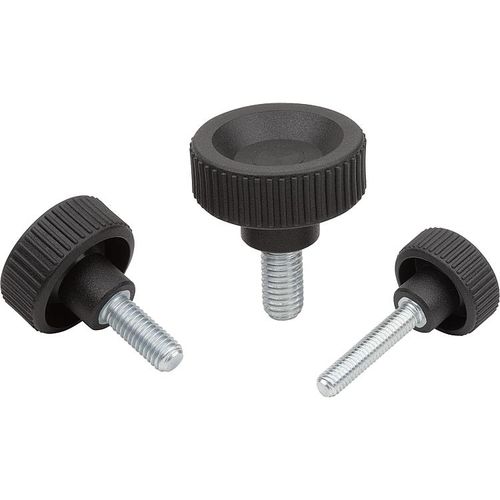

Clamping screw - K1473 series - HEINRICH KIPP WERK GmbH & Co. KG - knurled cylindrical head / Torx / steel
Clamping screw - K1473 series - HEINRICH KIPP WERK GmbH & Co. KG - knurled cylindrical head / Torx / steel
Clamping screw - K1473 series - HEINRICH KIPP WERK GmbH & Co. KG - knurled cylindrical head / Torx / steel - image - 2
Add to favorites
Compare this product

Characteristics

Applications
clamping
Head
knurled cylindrical head
Drive type
Torx
Materials
steel, stainless steel, polyamide, thermoplastic
Other characteristics
threaded
Diameter

Min.: 4 mm
(0.157 in)

Max.: 10 mm
(0.394 in)

Length

Min.: 10 mm
(0.39 in)

Max.: 40 mm
(1.57 in)

Description

Material: Reinforced polyamide thermoplastic, black grey. Threaded pin 5.8 steel or stainless steel 1.4305. Version: Threaded pin trivalent blue passivated steel, bright stainless steel. Advantages: The knurled screws can be tightened or loosened without tools. Suitable for manual fixing and clamping. Various thread sizes and lengths.
