Friction hinge K1195 series
PAPOM270°

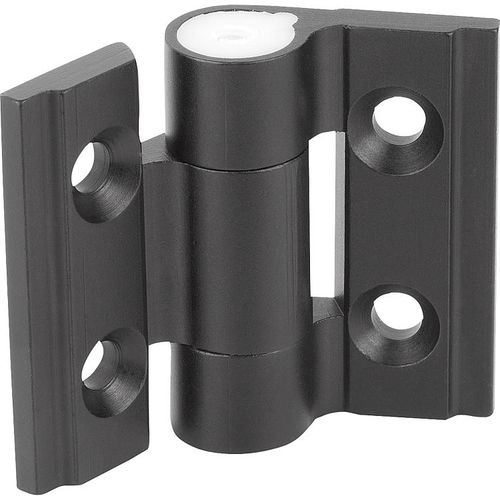

Friction hinge - K1195 series - HEINRICH KIPP WERK GmbH & Co. KG - PA / POM / 270°
Friction hinge - K1195 series - HEINRICH KIPP WERK GmbH & Co. KG - PA / POM / 270°
Friction hinge - K1195 series - HEINRICH KIPP WERK GmbH & Co. KG - PA / POM / 270° - image - 2
Add to favorites
Compare this product

Characteristics

Type
friction
Material
PA, POM
Opening angle
270°
Length

35 mm
(1.378 in)

Width

30 mm
(1.181 in)

Thickness

3.3 mm
(0.13 in)

Description

Material: Aluminium 6060 T5. End caps PA 6.6. Washers POM.Version:Black anodisedNote:These friction hinges allow doors to remain open at any desired angle. A set screw allows the amount of friction to be infinitely adjusted between 0–1 Nm. Opening angle 270°. Max. tensile strength: 2240 N Max. shear strength: 1050 N Fastened using DIN 7991 countersunk screws.Temperature range:From -20°C to +80°C

Catalogs

No catalogs are available for this product.

See all of HEINRICH KIPP WERK GmbH & Co. KG‘s catalogs
