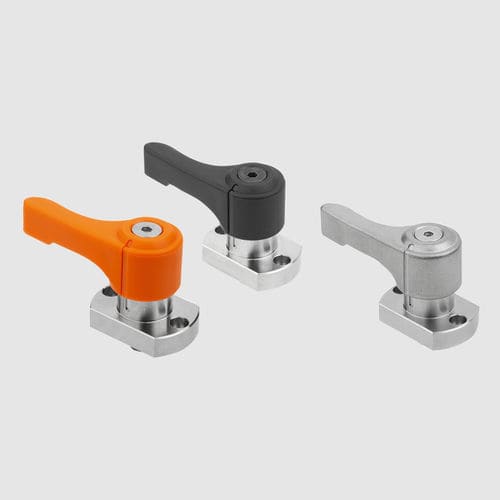

Manual clamp K2550 series

mechanicalmanually-controlledshaft

The thrust clamps offer a convenient, simple and quick way to secure or release mechanical parts such as flat bars or shafts. They are ideal for applications in machine and production technology where repeated handling is often required. The thrust clamps are easy to fit and enable precise adjustment and a secure hold. Material Housing, pin and diamond gripper stainless steel. Lever stainless steel or thermoplastic PA (polyamide). Version Housing and pins bright. Diamond gripper electro zinc-plated. Lever PA fibreglass reinforced, orange or black. Leer stainless steel, bright. Note M2 or M3 stainless steel fastening screws are included. Degrease all contact faces thoroughly. Do not move the jammed rods or shafts. Observe the recommended clamping range (5.9 - 6.3 mm). Excessive shocks or vibrations can cause the clamped object to move. Method of operation Ensure that the thrust clamp is in the unclamped position. Slide the flat bar or shaft into the unclamped position. Rotate the lever 90°. When fully clamped, the marking lines are aligned and a click signal can be heard. Drawing reference 1) Mounting option 1 for flat bars 2) Mounting option 2 for shafts 3) Mounting option 3 for flattened shafts 4) Clamped position 5) Unclamped position 6) Countersink diameter for variants with diamond surface 7) Suitable for fastening screws (hex socket) M2/M3 8) H4 = Recommended clamping range (clamping travel 5.8 - 6.5) 9) Minimum dimensions for mounting thrust clamps 10) Flat steel 11) H6 = Flat steel thickness (0 -0.2), determined by the customer 12) Shaft 13) Diameter for shaft collar: shaft diameter +0.1 +0.2
