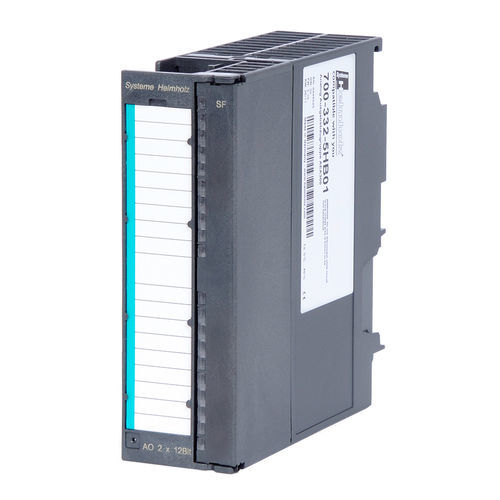

Analog output module 700-332-5HB01

multi-channelDIN rail mounted

The 2-channel analog output module is suitable for connection of analog actuators for voltage and current outputs in the range up to ±10 V or ±20 mA. The signal lines are connected to the corresponding front connectors and can be marked in the label field. The module is fully configured with the programming software. General information Order number700-332-5HB01 Article nameAEA 300, 0-10 V/ 4 -20 mA, 2-channel Scope of deliveryAEA 300, 0-10 V/ 4 -20 mA, 2-channel Dimensions (DxWxH)116 x 40 x 125 mm WeightApprox. 220g Diagnostic alarmYes, parameterizable DiagnosesRed LED for group error indicator Load voltage L+/L-24 V DC Shielded200 M Power dissipation (nominal operation)typ. 3 W Front connectors20-pin Output ranges Voltage outputs0 ... 10 V, ±10 V, 1 ... 5 V Current outputs4 ... 20 mA, ±20 mA, 0 ... 20 mA Measuring ranges / load resistance With voltage outputs min.1 kΩ With current outputs max.500 Ω Under capacitive load max.1 μF Under inductive load max.10 mH Short-circuit protection Short-circuit protectionYes Short-circuit currentMax. 25 mA No-load voltagemax. 18 V Isolation from the backplane busYes Operational error limit in the entire temperature range Voltage input±0.5% Current input±0.6% Basic error limit at 25 °C Voltage input±0.4 % Current input±0.5 % Current draw External240 mA Internal (backplane bus)100 mA Ambient conditions Ambient temperature0 °C … +60 °C Transport and storage temperature-25 °C … +75 °C Pollution degree2 Protection ratingIP20 ApprovalsCE
