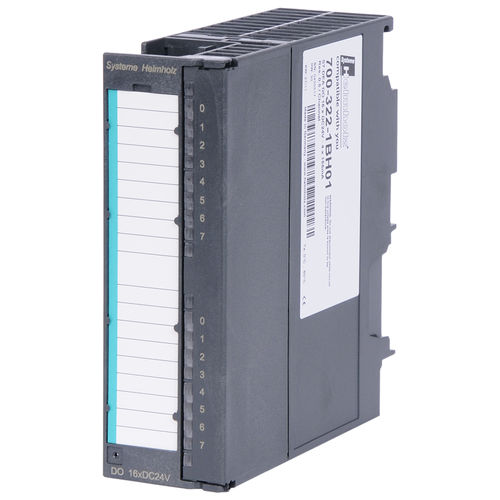

Digital output module 700-322-1BH01

16 digital outputsvoltagecurrent

Digital output modules for the 300 series General information Article nameDEA 300, DC 24 V, 0.5 A, 16 outputs Scope of deliveryDEA 300, DC 24 V, 0.5 A, 16 outputs Dimensions (DxWxH)116 x 40 x 125 mm WeightApprox. 220g Power dissipation (nominal operation)typ. 5 W Front connectors20-pin Electrical isolation from the backplane busYes (optocoupler) in groups to8 Supply voltage UP, US Rated value24 V DC Ripple USSmax. 3.6 V Permissible range (with ripple)+20 … +30 V Voltage for t < 10 msmax. 50 V Rated value0.5 A Short-circuit protectionElectronic Inductive cutoff voltage limit-48 V Cable length Unshieldedmax. 600 m Shieldedmax. 1000 m Current draw Internal (backplane bus)Max. 100 m External (from +24 V/L+)typ. 120 mA Ambient conditions Ambient temperature0 °C … +60 °C Transport and storage temperature-25 °C … +75 °C Pullution degree2 ApprovalsCE
