Insulated electrical wire

strandedround

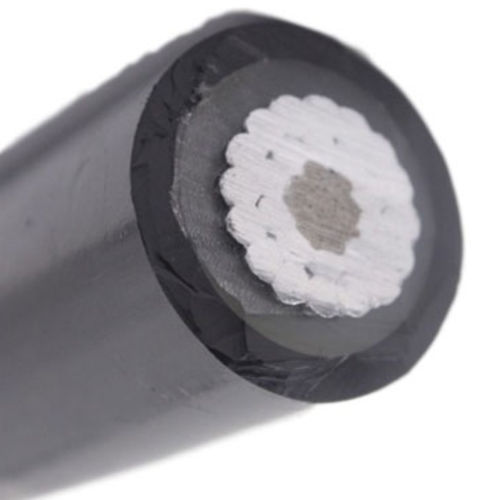

The tree wire is designed with concentrically stranded conductors - AAC (1350-H19) which are either compressed or compact depending on conductor size, available with AAAC or ACSR. The conductors can be covered with high-density track-resistant Polyethylene (HDTRPE) or track-resistant crosslinked Polyethylene (XLPE) insulation to meet different applications. The tree wire is used for primary and secondary overhead distribution where limited space is available or desired for rights-of-way. Installed the same as bare conductors, however, covering is effective in preventing direct shorts and instantaneous flashovers with other objects. The close-proximity configuration minimizes the amount of space and hardware required for line installation, making it particularly useful in congested areas such as alleyways or tight corridors. 15kV covered multi-layer tree wire meets or exceeds all applicable ICEA specifications and the following ASTM specifications: ASTM B230 ASTM B231 ASTM B232 ASTM B398 ASTM B399 ASTM B400 ICEA S121-733 2-Layer tree wire
