Gas preheater PRE

electric

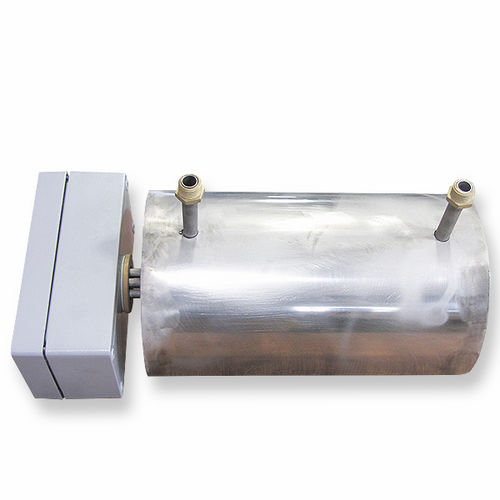

In its standard design the gas pre-heater is equipped with: Tube coil: Material 1.4404 / AISI 316L Ø 14x1 mm Electrical heating element / Immersion heater Stainless steel 1500 W (other versions available on request) Connections Inlet and outlet ½" nipple or free tube ends Optional with flange connection and compression fittings available Can be individually adapted to customer’s requirements Simple and fast installation Vertical or horizontal version with supporting feet Gas pre-heater for indirect heating of gases Gas pre-heaters made by Herbst Beheizungs-Technik consist of an electric heating element and a tube coil which are both cast in an aluminium block. Industrial and process gases or even fluids are directed through the tube coil which is heated up by the aluminium block, thus, ensures an extremely constant and precise heat transmission. The illustrated standard version can be individually adapted to customer’s requirements. Other connection types, capacities and dimensions are available on request.
