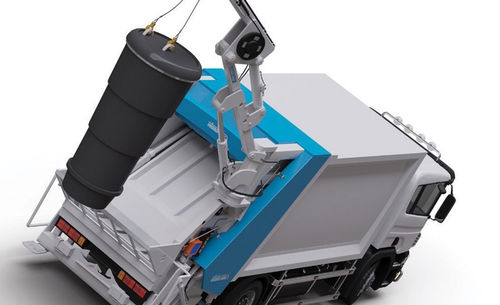

Rear-loader waste collection vehicle HV400

The Crane has been mounted on the rear bunker of the garbage compactor and it discharges to the rear bunker the underground container it lifts. Its most significant advantage; is that the present rear-end loaded hydraulic compaction garbage compactors can be transformed easly in to Crane Hydraulic Garbage Compactor by the modification made. Moreover, it can discharge standart containers, too, bye removing the extra cover on the rear bunker Low Cost Crane HV 400, High capacity and low cost crane that manufactured by Hidro-Mak Can be transformed into Rear Loading Garbage Truck HV 400 Underground Container's Crane can be adapted present garbage truck that rear loading type. ** Please contact our sales department to availability. Ecotwin- Hidrolik Özellikler Primary Working Pressure - 190 bar Maximum Working Pressure - 220 bar Oil Tank Volume - 155-240 lt Hydraulic Pump - 84 cm3/rev HV 400 Underground Container Crane Mechanical Specification Maximum Arm Length - 4 m Rotation - 180 degree Underground Container Volume - 1,5-3m3 Suitable Truck GWV (min) - 18 ton 4x2 HV 400 Under Ground Container Capacity 4m (Max Arm Length) - 1500 kg 3 m - 2000 kg 2 m - 3000 kg 1 m - 6000 kg HV 400 Underground Container Crane Working Time Stabilizing Legs Lifting (up&down) - 25 sn Bending Roller on-off time - 28 sn Main Arm up&down - 31 sn Rotating 180 degree - 35 sec Extending cylinder forward&back Cycle - 17 sec p.s - According to average of pump speed
