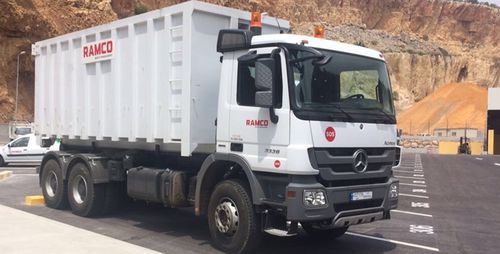

Truck hook lift HL series

Hooklift made for take on the truck and transport open or closed containers. According to DIN 30722 norm container tahe on the truck, locks with special lock mechanism and gets ready to transport. Hooklift loading precess, when the hooklift container is on ground, with opening lift arm in to the gip and with help of purchase, pulls the containers on the truck by folding lifting arm. At the same time the Hooklift lifting arm practises topple process,again opens for out down the container from on the vehicle, puts down the container and closes. For capacity 8*28 tone and 34 tone lifting capacity Hooklifts and suitable to those Hooklifts can produce containers. Hooklift Technical Specification (HL 8) Body Length - 3800-5000 mm Lifting Capacity - 8.000 kg Lifting Degree - 45-50 degree Oil Tank Capacity - 120 lt Operation Cycle - 65 sec Container Weight - 2.500-3.200 kg Hook Height - 950 mm Control System - MEchanic Hydraulic Pump - 65 lt /min Hook Weight - 1.150 kg Hooklift Technical Specification (HL 26) Body Length - 5000-6000 mm Lifting Weight - 26.000 kg Lifting Angle - 45-50 degree Oil Tank Capacity - 140 lt Operation Cycle - 140 sec Container Weight - 2.900-3.200 kg Hook Height - 1.600 mm Control System - Mechanic Oil Pump - 65 lt/min Hook Weight - 1.350 kg
