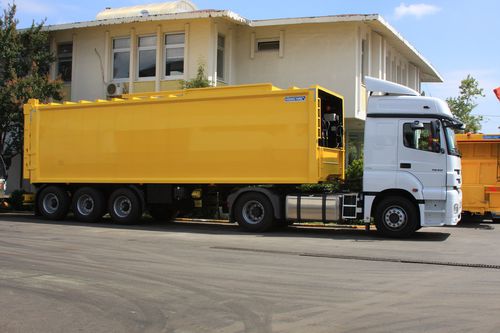

Solid Waste Push out Transfer
Transfer Semi Trailer has a compaction with upper loading system. All garbage collectors (mini tipper, rear loading garbage truck, skip hoist (for home type of waste, monoblok) can transfer to refuse in Semi Trailer. it is most effective way to reduce running cost and other truck service and workmanship cost. we are manufacturing two type trailers.
Upper Loading Push out
Rear Loading Push out
Moving Floor Solid Waste Transfer
HidroMak also manufacturing Moving Floor transfer semi trailer for solid waste. Moving Floor is registered brand of Cargo Floor.
Special Rear Gate Design
Degree Rear gate help to lock and leak proof.
Leak proof with Hydraulic Locking System
Hydraulic system support with two sides hook help to leak proof.
Easy to unload with high capacitiy rear gate
2,5 m3 Rear gate help to leakproof beside reduces unloading time. When High Capacity Rear gate is open, 2,5 m3 garbage start to fall inside. It reduces the unloading time.
Special solution to topl loading gate design
Top loading gate sliders has designed for heavy condition and to dry lubrication increase the life.
Full Frame (sides and bottom) leak proof ring
Garbage Transfer Rear gate has full frame sealing ring for leak proof.
Moving Floor
Moving floor systems have low operating costs and easy to use.
Garbage Transfer Body Technical Specification
Body Volume - 30-72 m3
Floor - 4-6 mm (S355J2) (optional: Hardox 450)
Sides - 3-4 mm (S355J2) (Optional : DOMEX)
Upper - 3-4 mm (S355J2)
Waste Ejection and Compaction Plate Front - 4mm (S355J2) (Opsiyonel :HARDOX 450)
