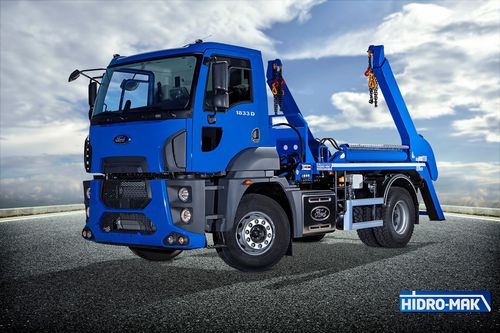

Hydraulic lifting device

The Skip Loader design to carry containers of uncompactable solid waste has structure which extension arms, too, can be added to acoording to the need. Stabilazation legs (jacks) can be made horizontal or vertical depending on the load state. There are available on it, a total number of six hydraulic and pneumatic cyclinder for hook holding system, these being, two numbers of lifting or extending and suppression. Skip Loader Capacities and Lengths Max. Container Volume - 10 m3 Max.Interior Loading Platform Width - 2030 mm Skip Loader Hydraulic Specification Hydraulic Pump - According to Skip Loader Truck Max. Operating Pressure - 220 bar Oil Tank Volume - 120-140 lt HV 400- Process Times Container Lifting Cycle - 45-60 sec Container Unloading Cycle - 40-55 sec Extension Arm Retraction of additional Arms - 10-20 sec Stabilazition Jacks Cycle - 10-15 sec P.S. - Process times according to the average values of the pump operating Rate
