Network analyzer NANL-B500G-RE BUNDLE

portabledigitalreal-time

Overview
The netANALYZER is a tool for the simple analysis of Real-Time Ethernet networks. A capture-hardware for recording the telegrams in the network as well as a graphical user software for Windows with extensive analysis functions are included. With the add-on software netANALYZER Scope, you can measure data in an intuitive graphical interface with oscilloscope functions (process values, network load, communication events, telegram jitter) without affecting the Ethernet network or the PLC. netANALYZER can also be used in autonomous operation without a PC.

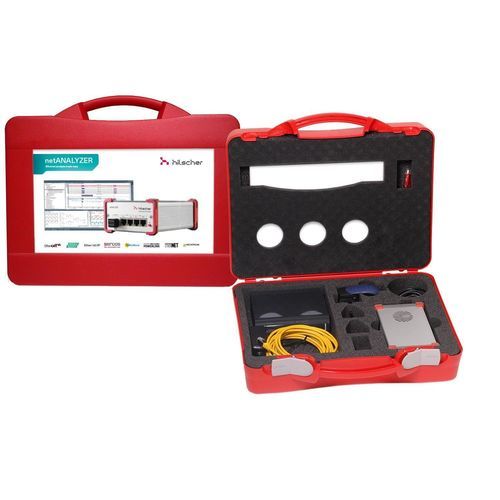

All-Inclusive bundle includes

• netANALYZER Box NANL-B500G-RE including power supply unit
• netANALYZER Scope with all licensed features
• Ethernet patch cable for connecting the analyzer
• Transport case NANL-B500G-RE CASE
• Screwdriver for connecting a COMBICON power supply or the GPIOs

Highlights

• All-Inclusive bundle in a robust case for safe transport and storage
• Includes netANALYZER Box NANL-B500G-RE
• Entirely licensed netANALYZER Scope software
• Limited exclusive offer (as noted on product page)

Supported protocols

• Ethernet
• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

caractéristiques / spécifications techniques

• Product name: NANL-B500G-RE (portable device with Gigabit Ethernet PC interface for Real-Time Ethernet and 10/100BASE-TX networks; stand-alone capable)
• Part number (product family reference on page): 7313.100 / bundle order part number 7313.105
• Function: Passive Ethernet analyzer for RT-Ethernet systems; captures incoming Ethernet frames and can capture events of four digital inputs
• Supply voltage: 24 V DC ±6 V DC
• Maximum current (typical): 700 mA (at 24 V)
• Typical power consumption: 16.8 W
• Power connector: COMBICON 3-pin (max cable length 3 m) or alternative barrel plug (max cable length 3 m). Only one alternative use permitted.
• System / PC interface: Gigabit Ethernet RJ45 (UPLINK 1 Gb/s)
• Capturing interface: USB 2.0 (for hard drive or memory stick), max. 500 mA or external power supply
• Autonomous operating mode: Data rate approx. at 50% network load when capturing from a TAP
• Measurement interface: 4 x RJ45 sockets, configured as 2/4 communication channels with integrated TAP (TAP A, TAP B), each with two ports for capturing both directions (total 4 ports: Port 0 to Port 3)
• Digital signals: 4× GPIO input/output (3.3 V and 24 V) for capturing digital signals or triggering outputs
• Timestamp accuracy/resolution: ±5 ns accuracy, 1 ns resolution
• Operating elements: Power switch and REC button to enable data recording in autonomous mode
• Ambient temperature (operation): 0 °C to +55 °C (air flow during measurement: 0.5 m/s)
• Ambient temperature (storage): -10 °C to +70 °C
• Humidity: 10 % … 95 % relative humidity, no condensation permitted
• Pollution degree: Use in pollution degree 2 environment
• Altitude: 0 m … 2000 m
• Device dimensions (L × W × H): 115 × 62 × 173 mm
• Weight: approx. 820 g
• Conformity / RoHS: RoHS compliant; CE and UKCA markings present
• EMC standards (selection): Emission EN IEC 61000-6-4:2019; Immunity EN IEC 61000-6-2:2019; ESD ±8 kV air / ±6 kV contact; Radiated RF 80–1000 MHz & 1.0–2.7 GHz (10 V/m) etc.
