Data analysis system LIC/SCP series

automatic

Overview

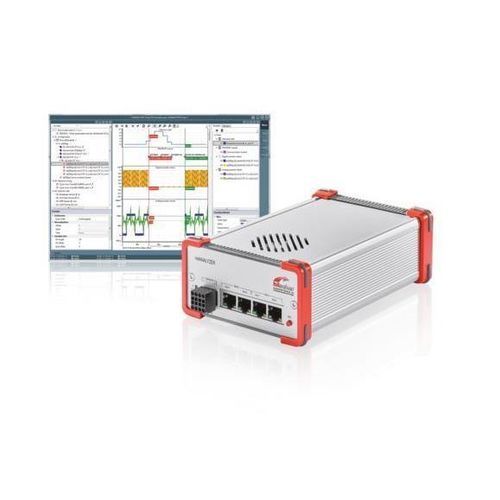

netANALYZER Scope (LIC/SCP) is a software extension for the netANALYZER Ethernet analysis tool that automatically interprets system-specific telegram traffic and displays transferred process values with plain-text names, correct data types and an exact 10 ns time stamp. Process values are recorded cycle by cycle to ensure no relevant value is lost. The tool also calculates classical netANALYZER metrics such as telegram jitter, cycle time, forwarding time and network load, and it detects important events like alarms or missing process-data telegrams. Data and views can be grouped or superimposed in oscilloscope-style views to reveal interconnections from transmission layer to application layer, simplifying problem localization.

Key capabilities

• Automatic interpretation of complete system-specific telegram traffic
• Exact 10 ns time stamp for process values
• Cycle-by-cycle recording of process values
• Computation of measuring values: telegram jitter, cycle time, forwarding time, network load
• Automatic event detection (alarms, missing process-data telegrams)
• Oscilloscope-style graphical views with grouping and superposition of values
• Freely configurable trigger conditions to isolate sporadic effects
• Passive analysis (no intervention in PLCs or device software required)
• Save and load complete analysis projects for remote expert review
• Usable without deep expertise in specific Ethernet technologies (telegram interpretation intelligence integrated)

Highlights

• Intuitive graphical user interface
• Avoids manual inspection of extensive telegram records
• No deep knowledge of Ethernet technology required for basic use
• Comprehensive trigger functions
• Save and load complete analysis projects for collaboration

Protocols supported

• Ethernet
• Sercos Master
• PROFINET IO-Controller
• EtherNet/IP Scanner
• EtherCAT Master
• Sercos Slave
• PROFINET IO-Device
• POWERLINK Controlled Node
• Open Modbus/TCP Server
• Open Modbus/TCP Client
• EtherNet/IP Adapter
• EtherCAT Slave

Order information (selection)
Product name | Part number | Brief description
LIC/SCP | 8582.001 | netANALYZER Scope software extension, Ethernet process-data analysis
LIC/SCP/PN | 8582.030 | netANALYZER Scope add-on, PROFINET process data and events
LIC/SCP/QTPN | 8582.031 | netANALYZER Scope add-on, PROFINET quicktester
LIC/SCP/ECAT | 8582.040 | netANALYZER Scope add-on, EtherCAT process data
LIC/SCP/CVF | 8582.050 | netANALYZER Scope add-on, custom definable data content
LIC/NANL/SA | 8582.060 | NANL-B500G-RE add-on, autonomous operation without PC
LIC/SCP/PCAP | 8582.070 | netANALYZER Scope add-on, import of frame records from other tools
LIC/SCP/EIP | 8582.080 | netANALYZER Scope add-on, EtherNet/IP process data

Downloads / Documentation (available)
Software installation guides (EN/DE), Operating instruction manual (EN/DE), Licensing documentation, User manual, Release notes, Datasheet, Infosheet.

Technical characteristics / specifications

• Time stamp resolution: 10 ns
• Recording mode: passive, cycle-by-cycle process-value capture
• Calculated metrics: telegram jitter, cycle time, forwarding time, network load
• Event detection: alarm detection, missing process-data telegrams
• Triggering: freely configurable trigger conditions
• Analysis views: oscilloscope-style views with grouping and superposition
• Interoperability: independent of manufacturer, diagnosis interfaces or device performance class
• Project management: save and reload complete analysis projects for remote analysis
• User requirements: usable without deep Ethernet-protocol expertise
• Integration: extension for the netANALYZER Ethernet analysis tool
