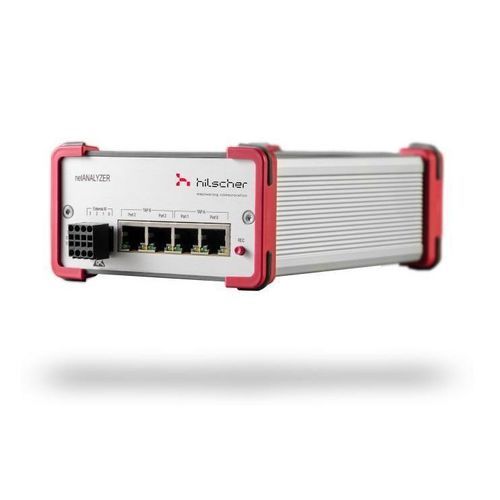

Communication network analyzer NANL-B500G-RE

portabledigitalinspection

Overview
The netANALYZER NANL-B500G-RE is a portable, passive analyzer for Real‑Time Ethernet networks. Delivery includes the capture hardware (stand‑alone box) and the Windows analysis application netANALYZER Scope. The hardware records telegrams and timestamps with high precision and can be used with third‑party tools such as Wireshark for protocol-level inspection.

Key capabilities

• Comprehensive analysis for Real‑Time Ethernet systems (PROFINET, EtherNet/IP, EtherCAT, POWERLINK, Sercos, Modbus/TCP)
• Passive TAP capture that does not affect network or PLC operation
• Intuitive graphical analysis with netANALYZER Scope (oscilloscope-style views for process values, network load and jitter)
• Station lists, alarms, process values, network load and telegram jitter measurement
• Continuous recording with configurable triggers; REC button for autonomous field captures

Description details
The NANL-B500G-RE supports standalone operation without a PC: use the REC button for immediate field captures. Advanced trigger functionality enables long-term deployment in a plant: when trigger criteria are met, the device creates telegram snapshots for later analysis in netANALYZER Scope. Four digital inputs allow event correlation with captured telegrams.

Protocols supported

• Ethernet
• Sercos Master / Slave
• PROFINET IO‑Controller / IO‑Device
• EtherNet/IP Scanner / Adapter
• EtherCAT Master / Slave
• POWERLINK Controlled Node
• Open Modbus/TCP Server / Client

Technical data (summary table)
Product name: NANL-B500G-RE
Part number: 7313.100
Description: Portable netANALYZER device with Gigabit Ethernet uplink for Real‑Time Ethernet and 10/100BASE‑TX networks (stand‑alone)
Function: Passive Real‑Time Ethernet analyzer, captures incoming Ethernet frames and communication link data; captures events from 4 digital inputs
Supply voltage: 24 V DC ±6 V DC
Typical current: 700 mA at 24 V
Typical power consumption: 16.8 W
Power connector: COMBICON 3‑pin or alternative barrel plug (max cable length 3 m for alternative)
PC interface / uplink: Gigabit Ethernet RJ45 (1 Gb/s uplink)
Capture storage: USB 2.0 (external HDD/USB stick), max. 500 mA or external supply
Autonomous mode: ~50% network load when capturing from a TAP
Capture interfaces: 4× RJ45 (2/4 communication channels with integrated TAP, full‑duplex capture)
Digital I/O: 4× GPIO inputs/outputs (3.3 V and 24 V)
Timestamp accuracy / resolution: ±5 ns / 1 ns
Controls: Power switch, REC button for autonomous recording
Dimensions (L×W×H): 115 × 62 × 173 mm
Weight: ≈ 820 g
Operating temperature: 0 °C … +55 °C
Storage temperature: -10 °C … +70 °C
Humidity: 10 % … 95 % RH, no condensation
Standards: CE, UKCA, RoHS; EMC: EN IEC 61000‑6‑4 / EN IEC 61000‑6‑2

Characteristics / Technical specifications

• Model: NANL-B500G-RE
• Part number: 7313.100
• Form factor: Portable standalone box with Gigabit uplink and 4 RJ45 capture ports
• Power: 24 V DC ±6 V, typical 16.8 W (700 mA)
• Interfaces: 1× Gigabit Ethernet uplink, 4× RJ45 capture ports, USB 2.0 storage, 4× GPIO
• TAP capability: Integrated per‑channel TAP for full‑duplex capture
• Timestamp: ±5 ns accuracy, 1 ns resolution
• Autonomous operation: REC button and trigger‑based snapshot recording
• Dimensions & weight: 115 × 62 × 173 mm; ~820 g
• Compliance: CE, UKCA, RoHS; EMC tested to relevant EN standards
