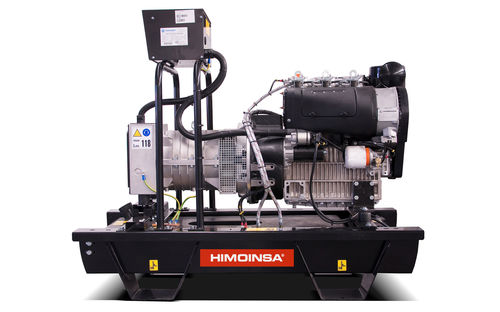

Diesel generator set HLA1-8 M5
single-phase50 Hzdirect fuel injection

Diesel generator set - HLA1-8 M5 - HIMOINSA - single-phase / 50 Hz / direct fuel injection
Diesel generator set - HLA1-8 M5 - HIMOINSA - single-phase / 50 Hz / direct fuel injection
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
single-phase
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
air-cooled
Applications
industrial
Power in kVA

Max.: 8.5 kVA
(11.56 hp)

Min.: 7.9 kVA
(10.74 hp)

Rotational speed

Max.: 1,500 rpm
(9,425 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

This Lombardini diesel engine runs on a 4 strokes-cycle with a direct injection type. Model 9LD 625/2 has a natural aspiration, 2-L cylinders and a rated output of 9.7 kW prp or 10,7 kW on standby. It works on an air cooling system with a displacement of 1,248 L. The bore and stroke sizes are 95 x 88 mm. The engine uses lube oil API CF4/SG; ACEA B2-E2; MIL-L-2104 D/E. The total oil capacity, including tubes and filters, is 3.1 L. The fuel consumption is 2.74 l/h at 100% PRP. The air cooled diesel engine has a 12V electrical system, a mechanical governor, a dry air cleaner, hot components and radiator guards, and mobile components guards.

Other HIMOINSA products

SERIES HLA_LOMBARDINI
