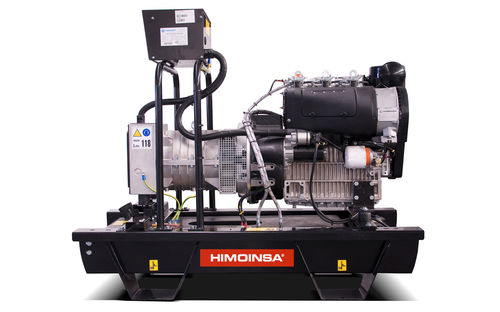

Diesel generator set HLA1-17 T6three-phase60 Hzdirect fuel injection
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Frequency
- 60 Hz
- Fuel System
- direct fuel injection
- Cooling system
- air-cooled
- Applications
- industrial
- Power in kVA
Max.: 21 kVA
(28.55 hp)Min.: 18.7 kVA
(25.42 hp)- Rotational speed
Max.: 1,800 rpm
(11,310 rad.min-1)Min.: 0 rpm
(0 rad.min-1)
Description
The Himoinsa Moel HLA1-17 T6 by LOMBARDINI produces a rated output of 18 kW prp and 20 kW on standby. It uses a diesel 4 strokes-cycle engine of direct injection type. It has a natural aspiration type, with cylinders arranged at 3-L.
The 11LD626-3 model has a bore and stroke measuring 95 x 88 mm with a displacement of 1.87 L. The machine uses air cooling and has a compression ratio of 17:1. Its fuel consumption on standby is 5.52 l/h. It is able to contain total oil of 5.5 l including its tubes and filters.
Its air filter type utilizes oil bath while the governor type is mechanical. It comes with radiator guards and hot components.
