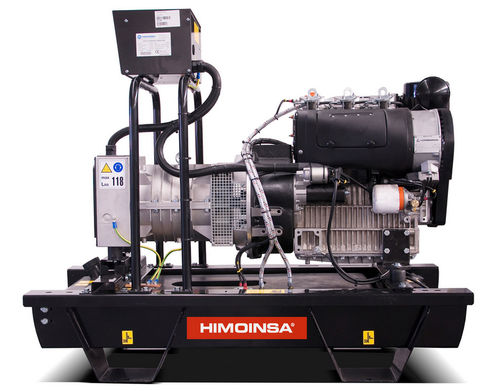

Diesel generator set HLA1-10 T5
three-phase50 Hzdirect fuel injection

Diesel generator set - HLA1-10 T5 - HIMOINSA - three-phase / 50 Hz / direct fuel injection
Diesel generator set - HLA1-10 T5 - HIMOINSA - three-phase / 50 Hz / direct fuel injection
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
three-phase
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
air-cooled
Applications
industrial
Power in kVA

Max.: 11.4 kVA
(15.5 hp)

Min.: 9.9 kVA
(13.46 hp)

Rotational speed

Max.: 1,500 rpm
(9,425 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

With the rated output of 9,7 kW prp; 10,7 kW standby, LOMBARDINI 9LD 625/2 comes with Diesel engine of 4 strokes-cycle having direct Injection Type. Its Cylinders Arrangement is 2-L and Bore and Stroke specifications of 95 x 88 mm. The cooling system used is Air based and API CF4/SG; ACEA B2-E2; MIL-L-2104 D/E as its Lube Oil Specifications. The Compression Ratio remains as 17,5:1 with Fuel Consumption StandBy of 3,14 l/h. This equipment has fuel consumption of 100% PRP: 2,74 l/h. With Air Filter Type of Oil bath, the exhaust pipe has diameter of 38 mm. With mechanical governance and Dry air cleaning, it offers optimal and efficient performance.

Other HIMOINSA products

SERIES HLA_LOMBARDINI
