Diesel generator set HLA1-13 M5
single-phase50 Hzdirect fuel injection

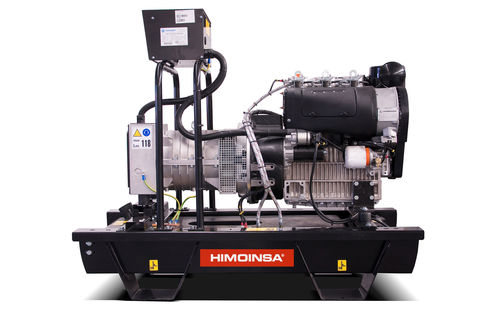

Diesel generator set - HLA1-13 M5 - HIMOINSA - single-phase / 50 Hz / direct fuel injection
Diesel generator set - HLA1-13 M5 - HIMOINSA - single-phase / 50 Hz / direct fuel injection
Add to favorites
Compare this product

Characteristics

Motor type
diesel
Phase
single-phase
Frequency
50 Hz
Fuel System
direct fuel injection
Cooling system
air-cooled
Applications
industrial
Power in kVA

Max.: 14.5 kVA
(19.71 hp)

Min.: 12.8 kVA
(17.4 hp)

Rotational speed

Max.: 1,500 rpm
(9,425 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Description

This Lombardini diesel engine runs on a 4 strokes-cycle with a direct injection type. Model 11LD626-3 has a natural aspiration, 3-L cylinders and a rated output of 14.7 kW prp or 16.7 kW on standby. It works on an air cooling system with a displacement of 1.87 L. The bore and stroke sizes are 95 x 88 mm. The engine uses lube oil API CF4/SG; ACEA B2-E2; MIL-L-2104 D/E. The total oil capacity, including tubes and filters, is 5.5 L. The fuel consumption is 4.61 l/h on standby. The air-cooled diesel engine has a 12V electrical system, a mechanical governor, a dry air cleaner, hot components and radiator guards, and mobile components guards.
