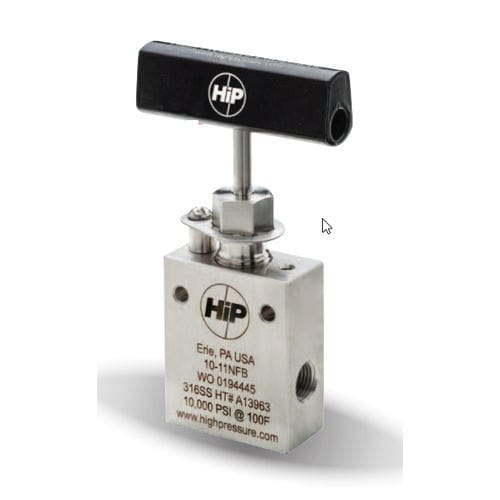

Pipe valve NF series manualregulatingstraight
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Function
- regulating
- Body
- straight, stainless steel
- Applications
- pipe
- Number of channels
- 2-way
- Associated function
- service
- Other characteristics
- standard, remote control
- DN
0.125 in, 0.25 in, 0.375 in, 0.5 in
- Pressure
10,000 psi, 15,000 psi
- Temperature
200 °F, 350 °F, 450 °F, 650 °F
(93 °C, 177 °C, 232 °C, 343 °C)
Description
Non-rotating tip stems are standard for on-off service and insure long life on valve seats. Regulating tip stems are available for all valves at no additional cost.
Materials include high tensile Type 316 stainless steel for valve bodies, and hardened 17-4PH stainless steel for lower section stems.
Air operators for remote control operation are available for all valves.
Air operators for remote control operation are available for all valves.
Extreme temperatures can be accommodated by using extended stuffing boxes
