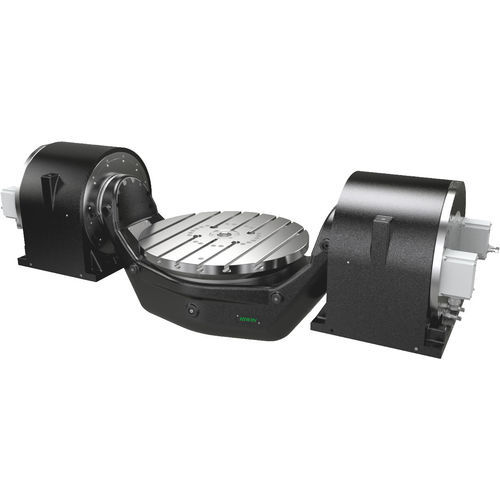

Motor-driven rotary table RAB series

horizontalfor machine toolsfor machining centers

Overview
The RAB series rotary and swivel tables are double-supported, direct-drive precision axes designed for demanding machining tasks. Water-cooled torque motors provide extreme acceleration, high continuous and peak torques and truly backlash-free operation. High-resolution encoders deliver positioning accuracy down to ±5 angular seconds. Flexible customisation options allow integration into a wide range of machine concepts.

Available models
Type | Max. rotary axis speed [1/min] | Rotary axis continuous torque [Nm] | Rotary axis peak torque [Nm] | Table diameter [mm] | Max. load [kg]
RAB-400 | 90 | 430 | 810 | 400 | 350
RAB-500 | 100 | 600 | 1,100 | 500 | 850
RAB-630 | 100 | 600 | 1,100 | 630 | 850
RAB-800 | 90 | 2,200 | 3,900 | 800 | 1,200

Features

• Direct-drive torque motor for backlash-free operation and high dynamic response
• Bearings on both sides for elevated stiffness and repeatability
• Water-cooled motors enabling extreme acceleration and high continuous/peak torques
• High-resolution encoders achieving accuracies up to ±5 angular seconds
• Multiple table diameters and load capacities to match machining requirements
• Flexible customisation for integration into different machine architectures

Technical specifications

• Series name: RAB
• Accuracy: up to ±5 angular seconds (with high-resolution encoders)
• Drive type: direct drive (torque motor), water-cooled
• Maximum peak torque (series max): 3,900 Nm (RAB-800)
• Maximum continuous torque examples: 430 Nm (RAB-400), 600 Nm (RAB-500 / RAB-630), 2,200 Nm (RAB-800)
• Maximum rotary axis speed examples: 90 1/min (RAB-400 / RAB-800), 100 1/min (RAB-500 / RAB-630)
• Table diameters available: 400 mm, 500 mm, 630 mm, 800 mm
• Maximum load capacities: 350 kg (RAB-400), 850 kg (RAB-500 / RAB-630), 1,200 kg (RAB-800)
• Typical peak torques: 810 Nm (RAB-400), 1,100 Nm (RAB-500 / RAB-630), 3,900 Nm (RAB-800)
