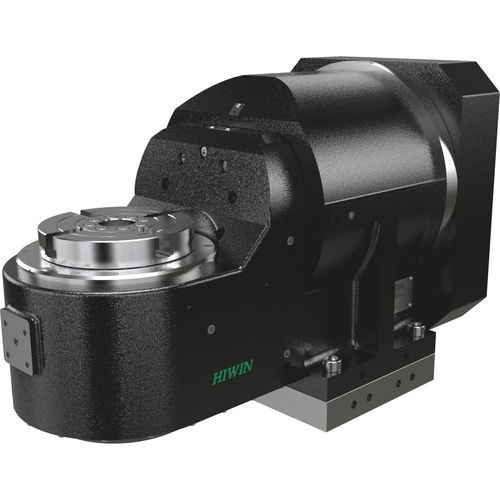

Motor-driven rotary table RAS series

horizontalfor machine toolsflexible

Description
The single-sided rotary and swivel tables in the RAS series are directly driven, maintenance-free precision axes designed for compact, dynamic machine integration. Water-cooled torque motors provide very high accelerations and torques while backlash-free direct drive ensures repeatable positioning. High-resolution encoders deliver accuracies down to 1.5 arc seconds. Models support load capacities up to 300 kg and selectable maximum speeds depending on the variant.

Available models and key parameters

• RAS-170 — Max. rotary axis speed: 200 1/min; Continuous torque: 35 Nm; Peak torque: 66.5 Nm; Table diameter: 170 mm; Max. load: 30 kg
• RAS-200 — Max. rotary axis speed: 200 1/min; Continuous torque: 63.5 Nm; Peak torque: 120 Nm; Table diameter: 200 mm; Max. load: 50 kg
• RAS-200-SP — Max. rotary axis speed: 2,000 1/min; Continuous torque: 27.9 Nm; Peak torque: 52.7 Nm; Table diameter: 200 mm; Max. load: 50 kg
• RAS-250 — Max. rotary axis speed: 200 1/min; Continuous torque: 145 Nm; Peak torque: 275 Nm; Table diameter: 250 mm; Max. load: 85 kg
• RAS-320 — Max. rotary axis speed: 150 1/min; Continuous torque: 205 Nm; Peak torque: 390 Nm; Table diameter: 320 mm; Max. load: 200 kg
• RAS-650 — Max. rotary axis speed: 100 1/min; Continuous torque: 600 Nm; Peak torque: 1,100 Nm; Table diameter: 650 mm; Max. load: 300 kg

Technical features / specifications

• Direct drive (torque motor) for backlash-free operation
• Single-sided rotary and swivel table design for compact integration
• Maintenance-free precision axis
• Water-cooled torque motors enabling high accelerations and torques
• High-resolution encoders achieving accuracies down to 1.5 arc seconds
• High speeds: models with max rotary speeds up to 2,000 1/min (model dependent)
• Load capacity up to 300 kg (model dependent)
• Compact and dynamic design suitable for machine integration
• Flexible customisation options for application-specific integration
