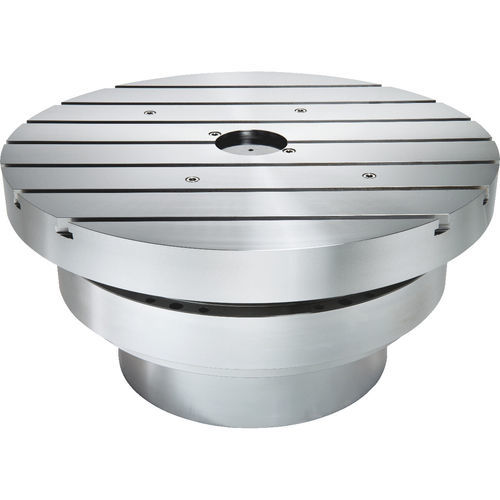

Motor-driven rotary table RCH series

horizontalfor machine toolsfor machining

Product description
Horizontal rotary tables in the RCH series are directly driven, maintenance-free precision axes for dynamic machining processes. Water-cooled torque motors enable extreme acceleration, high torques and backlash-free operation. High-resolution encoders ensure accuracies of up to ±5 angular seconds. Flexible customisation creates the perfect, integrable solution for every machine.

Available variants (table)
Type | Max. rotary axis speed [1/min] | Rotary axis continuous torque [Nm] | Rotary axis peak torque [Nm] | Table diameter [mm] | Max. load [kg]
RCH-200-SP | 2.000 | 27,9 | 52,7 | 200 | 50
RCH-200 | 280 | 63,5 | 120 | 200 | 100
RCH-400 | 115 | 480 | 910 | 400 | 500
RCH-600 | 100 | 1.290 | 2.400 | 600 | 850
RCH-800 | 80 | 2.000 | 3.600 | 800 | 1.800

Features

• Directly driven, maintenance-free precision rotary axes
• Water-cooled torque motors for extreme acceleration and high torques
• Backlash-free operation
• High-resolution encoders with accuracies up to ±5 angular seconds
• Flexible customisation for integrable machine solutions

Technical specifications

• Series: RCH
• Table diameters available: 200 mm, 400 mm, 600 mm, 800 mm
• Max. rotary axis speed (by variant): RCH-200-SP 2.000 1/min; RCH-200 280 1/min; RCH-400 115 1/min; RCH-600 100 1/min; RCH-800 80 1/min
• Continuous torque range: from 27,9 Nm (RCH-200-SP) up to 2.000 Nm (RCH-800)
• Peak torque range: from 52,7 Nm (RCH-200-SP) up to 3.600 Nm (RCH-800)
• Max. load range: 50 kg (RCH-200-SP) up to 1.800 kg (RCH-800)
• Encoder accuracy: up to ±5 angular seconds
• Cooling: water-cooled torque motors
• Intended use: dynamic machining processes requiring high acceleration, high torque and high positional accuracy
