Motor-driven rotary table RCV series

verticalcompactdirect-drive

Product description

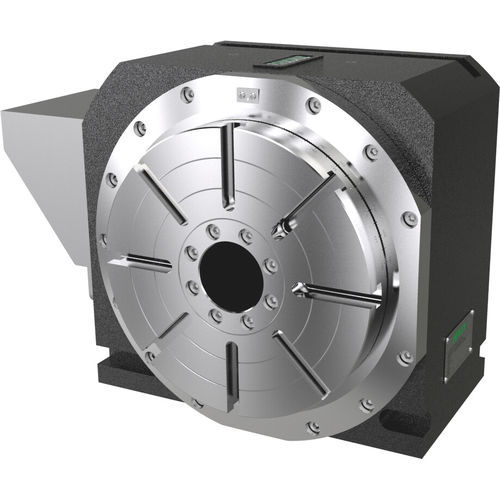

Vertical rotary axes of the RCV series are direct-drive, maintenance-free precision axes designed for demanding industrial applications. Torque motors enable speeds up to 1,000 1/min, high acceleration and backlash-free operation. High-resolution encoders ensure repeatability and accuracies down to ±5 arcseconds. With series payload capacity up to 800 kg, RCV axes provide compact, integrable solutions tailored to machine requirements.

Available models

• RCV-125
• RCV-170
• RCV-250
• RCV-320

Technical data (excerpt)
Type | Max. speed rotary axis [1/min] | Continuous torque rotary axis [Nm] | Peak torque rotary axis [Nm] | Table diameter [mm] | Max. payload [kg]
RCV-125 | 400 | 31.3 | 59.4 | 125 | 20
RCV-170 | 200 | 106 | 203 | 170 | 50
RCV-250 | 140 | 148 | 280 | 250 | 160
RCV-320 | 90 | 430 | 810 | 320 | 250

Characteristics / Technical specifications

• Direct drive (torque motors) — direct power transmission without gearing
• Designed for maintenance-free operation
• Torque motors supporting speeds up to 1,000 1/min (series indication)
• High acceleration capability and backlash-free operation
• High-resolution encoders with accuracies down to ±5 arcseconds
• Series payloads up to 800 kg (model-dependent)
• Tabulated key data per model: max speed, continuous torque, peak torque, table diameter, maximum payload (see technical data)
• Flexible customization and integration for different machine requirements
