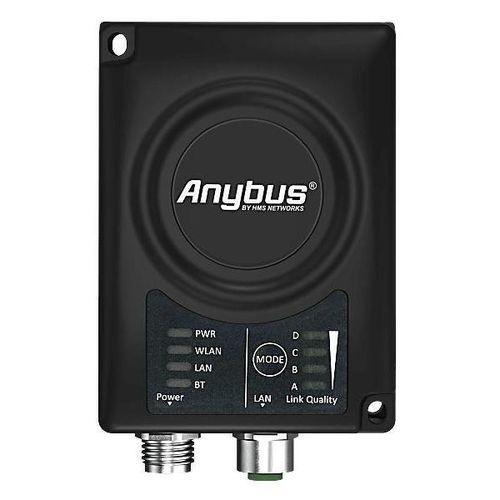

Wireless Ethernet bridge Anybus AWB3000-B

WiFiindustrialpoint-to-point

Product overview
The Anybus Wireless Bridge II (AWB3000-B) provides secure wireless Ethernet connectivity using Bluetooth® and Wi‑Fi to replace wear-prone cables in industrial environments. It supports point-to-point and multi-point topologies for reliable machine-to-machine and cabinet connectivity.

Features and benefits

• Reduces unplanned downtime - Eliminates failures caused by worn cables, connectors and slip rings.
• Industrial design - IP65 enclosure and wide operating temperature range; certified for UL Haz.Loc. Class 1/Div2 and ATEX Zone 2 (Gas).
• IT approved & secure - Secure wireless operation with compliance to international security requirements; does not interfere with existing networks.
• Flexible topologies - Supports point-to-point links for moving or stationary machines and multi-point operation as an Access Point (up to 7 clients).
• Industrial Ethernet support - Connects TCP/IP-based industrial protocols (BACnet/IP, PROFINET, EtherNet/IP, Modbus TCP) over Bluetooth and Wi‑Fi.
• Integration - Compatible with Anybus Wireless Bolt for multi-directional wireless infrastructures.
• Industry-grade safety - PROFIsafe compliance for robust wireless use in industrial settings.
• Easy setup and diagnostics - Mode button for bridge-to-bridge pairing; CLI and AT-command support for configuration and diagnostics.

Applications

• Wireless replacement of cable links on moving equipment (cranes, turntables, robots).
• Wireless connections to control cabinets, conveyors and machine tools.
• Multi-point sensor and controller networks where a single access point supports up to 7 clients.

Product identifiers

• Item number: AWB3000-B
• Model code: AWB3AA
• Brand: Anybus

Technical specifications

• Wireless: Bluetooth Classic v2.1, Bluetooth LE v4.0, Wi‑Fi 2.4/5 GHz; Max concurrent clients (AP): 7; RF output: BT Classic 14 dBm EIRP, BLE 10 dBm EIRP, Wi‑Fi 18 dBm EIRP (incl. antenna gain)
• Connectors: 1× M12 Ethernet (4-pin, D-coded); 1× M12 Power (5-pin, A-coded); Power supply not included; Power consumption: 1.7 W
• Environment: Protection class IP65; Operating temperature: -30 °C to 65 °C; Storage: -40 °C to 85 °C; Housing: plastic; Mounting: wall mount
• Dimensions & weight: 68 × 93 × 33 mm (W×H×D); Net weight: 150 g; Pack weight: 160 g
• Certifications: CE, FCC, UL, ATEX, RED/EMC; Approved radio certificates for multiple countries (EU, USA, Canada, Japan, Australia, etc.)
• Included: Quick start documentation, USB configuration cable, antenna included; CLI and AT commands supported for advanced configuration
• Other: Country of origin: Lithuania; HS code: 8517620000; Warranty: 3 years
