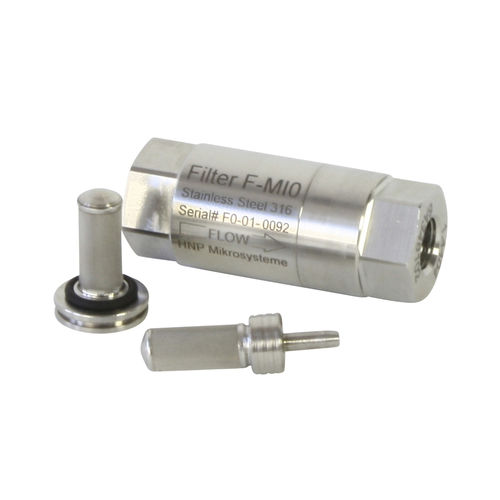

Liquid filter F-MI0

wire meshsuctionfor pumps

Filters are used in fluidic systems to protect sensitive components from damage due to contamination and particles. For the safe operation of micro annular gear pumps and their precision-machined rotors, the use of a 10 µm meshed filter is recommended. With compact filter units made out of corrosion-resistant materials, with high filtration performance and different mesh sizes, HNP Mikrosysteme offers suitable filter solutions for all of its pump series. The filter series F-MI0 is available in two different configurations. The »inlet filter«, without an external housing, is directly immersed in the liquid. The »inline filter« is designed to be installed downstream in the feed line, i.e. directly before the pump. To avoid sedimentation and cross-contamination the filter has a very small dead volume and is manufactured with a smooth surface (Ra 0.8). Advantages - Corrosion-resistant materials: stainless steel 316L or alloy C22 and FPM, FFPM or EPDM - Metal filter elements: without solder or adhesives - High filtration performance and very small size: optimized filter element for a low pressure drop even at higher flow rates and viscosities - Very compact: installation space reduced to a minimum - User-friendly and economical: filter elements can be cleaned or replaced
