Auger dosing feeder SDM

gravimetricpowderfor pharmaceutical products

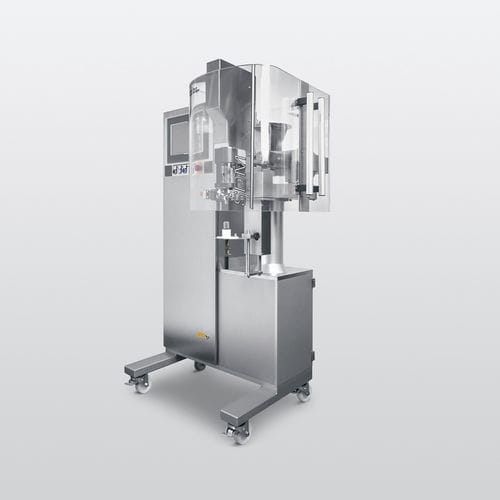

The SDM auger dosing unit fills vials, reservoirs and cartridges with powder. Its purpose is to verify the dosing of the powder and to produce the smallest sample quantities for lab tests. The dosing range can be adjusted variably with servo technology. The SDM can be operated as a standalone unit or as a setup model. Benefits • Separate drives for stirrer, cross feeding and dosing auger • Tool-free replacement of parts in contact with the powder • Optional tendency regulation based on the “fill-to-weight” principle with gravimetric scale • Optional sterilizable parts in contact with the product • Optional sealing system to prevent the powder from spilling out • Optional integrated ionization of the dust extraction Technical data • Dosing volume: approx. 20 mm³ – approx. 1000 mm³ • Dosing range: 10 – 5000 mg* • Particle size: 1 µm and higher * At a reference density of the powder of 0.5 mg per mm³ Final products • Cartridges • Powder reservoirs • Devices • Vials
