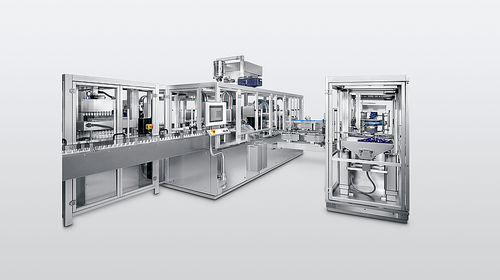

Automatic assembly machine FOT

for medical applicationscompactstandardized

Numerous processes can be integrated on the FOT oval motion machine platform. In addition to assembly and inspection processes, the assembly machine can be expanded to include dosing stations for powder, pellets or liquids, etc. So, even more complex pharmaceutical products with a large number of individual parts can be assembled – especially reservoir DPIs. Barrier technology allows for the use of a clean room. Benefits • Standardized platform to integrated technologies and processes • Precise product transport with high cycle rates • Ideal for products made of a large number of individual parts with complex processes and a dense sequence of assembly steps, inspections and dosages. • Compact design with minimal set-up space • Easy to link to other technology platforms and packaging machines Technical data • Output: up to 60 cycles/min • Stations: 12-50 • Exception: 1 to 8 grooves • Clean room design option: Clean room class 100,000-1,000 Final products • Inhalers with powder reservoirs Machine features Parts handling Components are automatically taken out using vacs, grippers or tongs and accurately transferred. This can be performed in a linear or swivel movement. To increase the output, these systems can be set up at multiple locations so as to perform loading and unloading tasks at the same time. Reservoir filling Some dry powder inhalers include a powder reservoir for a pre-defined number of dosages. Generally, the defined quantity of active ingredients is filled using an auger filler. Several filling spaces can be integrated to increase the output.
