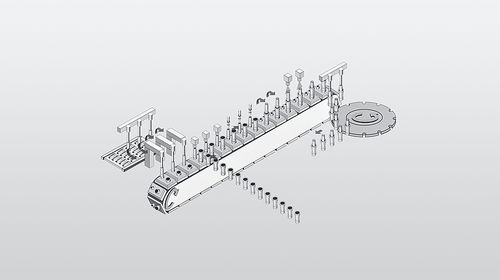

Automatic filling line FLT

for cartridgesliquidsfor powders

The FLT platform provides the capability to integrate many stations in the assembly machine, and to thus be able to process a large number of components. With the linear, lean setup, the material flow is clearly arranged, the feeding technology is ideally positioned and isolating technology can be used. Benefits • Simple integration of technologies allowing the dosing of medications for inhalers or the filling of liquid ingredients and pellets for diagnostic products. • Optimum accessibility • High availability high cycle rates • Efficiently stops active ingredient substances from spilling Technical data • Output: up to 80 cycles/min • Stations: 12-42 • Exception: 1 to 12 grooves • Clean room design option: Clean room class 100,000-10,000 • Process station motors (depending on the assembly task): cam-controlled, electro-pneumatic or servo-motor driven Final products • Inhalers with unit dose cartridges • Inhalers with multi-dose discs Machine features Parts handling Components are automatically taken out using vacs, grippers or tongs and accurately transferred. This can be performed in a linear or swivel movement. To increase the output, these systems can be set up at multiple locations so as to perform loading and unloading tasks at the same time. Automation Automated logistics concepts control how product components are fed via feeding unit and regulate the transport systems within the machine. Robot and automation technology is intended to insert components into production machines and to handle them during assembly.
