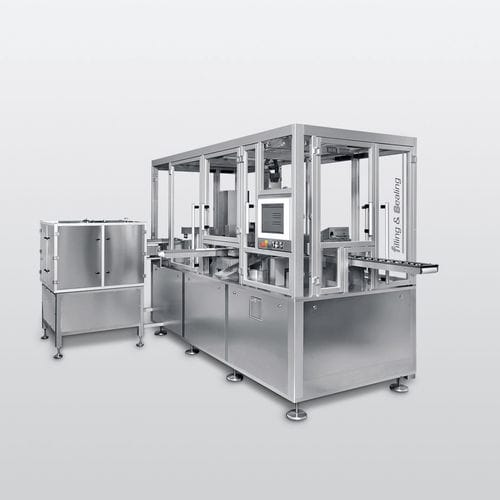

Automatic filling and sealing machine LLT

thermalliquidsbag

LLT is a fully automatic production platform for liquid filling and device assembly. Product containers are moved via longitudinal transport to the dosing station without spilling the product. Several processes can be integrated in LLT, and as such even more complex end products can be processed. With the linear, lean setup, the material flow is clearly arranged, the feeding technology is ideally positioned and isolating technology can be used. Benefits • Simple integration of technologies allowing the dosing or filling of liquid ingredients even under aseptic conditions • Integrated film handling, punching and sealing • Labeling, marking and printing, including inspection system • Welding and hemming processes using thermal, laser and ultrasonic technology • Inspection processes such as leak tightness and flow inspections, plus pressure, force, weight and torque measurements up to overall functions testing • Efficiently stops active ingredient substances from spilling • Fully automatic processing of different devices Technical data • Output: up to 80 cycles/min • Stations: 12-42 • Exception: 1 to 12 grooves • Clean room design option: Clean room class 100,000-10,000 Final products • Soft-Mist-Inhaler (SMI) • Eye drops • IV bags • Nasal dispensers • Diagnostic strips • Liquid tubes Periphery • Feeding technology • Tray loader • Assembly machines • Packaging machines
