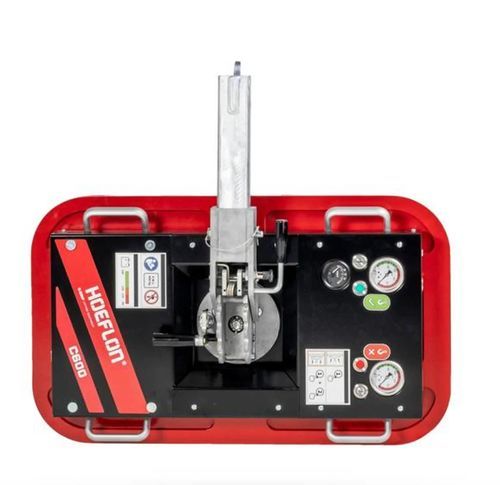

Glass plate vacuum lifting device C600

electricdoublebattery-powered

Overview

The Hoeflon C600 is a compact electric glass vacuum lifter for portable handling and installation of glass panels. It is configurable with multiple lifting arm lengths and can be supplied with radio control for remote operation, enabling use on glazing and assembly sites.

Accessories

• Remote control
• Transport trolley
• Short lifting arm
• Long lifting arm
• Swappable battery system including spare battery

Key features

• Double vacuum system as standard (redundant dual-circuit for enhanced safety)
• Compact, lightweight unit for easy transport and on-site handling
• Optional radio control for remote operation
• Infinite rotation range for flexible positioning
• Available with shortened lifting arm for confined spaces

Technical specifications

• Maximum lifting capacity: up to 600 kg
• Lifting capacity (single circuit of double system): 300 kg
• Tilting range: 90° with 6 locking positions
• Machine weight: 30 kg
• Rotation: infinite rotation range
