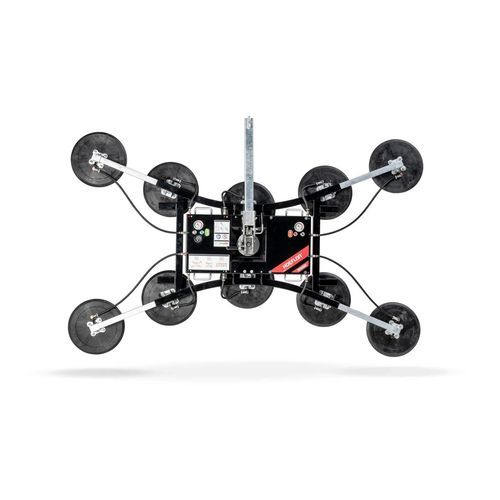

Sheet vacuum lifting device S1000

for flat partsglass plateadjustable

The Hoeflon S1000 is a compact, lightweight multifunctional glass suction lifter engineered for indoor glazing and handling narrow windows while keeping a low machine width for use between façades and scaffolding.

Key product details
The S1000 features an inline layout allowing operation on windows from 1 metre width, a large spread combined with a compact base unit, and an overall low machine width suitable for working in confined façades. Angle adjustment on the lifting arm can be fixed in multiple positions to improve safety and handling during indoor glazing installation.

Accessories (supplied as standard)

• Remote control
• Transport trolley
• Long lifting arm
• Short lifting arm
• Swappable battery system including spare battery
• Protective covers for suction cups

Applications / suitability
Designed for indoor glazing installation and the handling of glass panes and other flat materials where a compact machine width, adjustable arm angle and high suction lifting capacity are required.

Technical specifications

• Lifting capacity (double circuit): 600 - 1000 kg
• Tilting range: 90° with 6 locking positions
• Machine weight: 85 kg to 110 kg
• Rotation range: 360° with 4 locking positions
