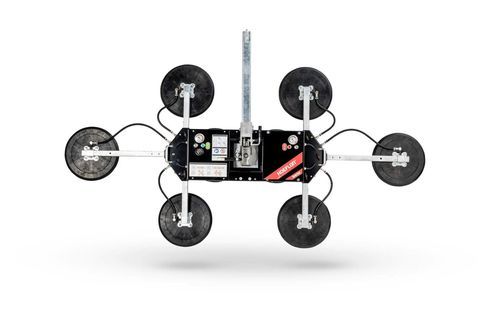

Flat part vacuum lifting device S800glass platefor the construction industryadjustable
Add to favorites
Compare this product
Characteristics
- Product applications
- for flat parts, glass plate, for the construction industry
- Type
- adjustable
- Power
- electric
- Options
- 90°-pivoting, rotary, double, battery-powered
- Carrying capacity
Max.: 800 kg
(1,764 lb)Min.: 200 kg
(441 lb)- Weight
Max.: 80 kg
(176.37 lb)Min.: 55 kg
(121.25 lb)
Description
Product overview
The Hoeflon S800 is a multifunctional glass suction lifter designed for handling and installing glazing up to 800 kg. It combines adjustable tilting on the lifting arm, full rotation capability and a very low overall width to enable work between façades and scaffolding.
Accessories supplied as standard
Applications and advantages
The S800 is intended for indoor glazing, façade installation and tight-space operations. Its adjustable arm angle with multiple locking positions and modular accessories increase safety and flexibility on site while the compact profile facilitates handling in confined gaps.
Technical specifications
The Hoeflon S800 is a multifunctional glass suction lifter designed for handling and installing glazing up to 800 kg. It combines adjustable tilting on the lifting arm, full rotation capability and a very low overall width to enable work between façades and scaffolding.
Accessories supplied as standard
- Remote control
- Transport trolley
- Short lifting arm
- Long lifting arm
- Swappable battery system including spare battery
- Protective covers for suction cups
Applications and advantages
The S800 is intended for indoor glazing, façade installation and tight-space operations. Its adjustable arm angle with multiple locking positions and modular accessories increase safety and flexibility on site while the compact profile facilitates handling in confined gaps.
Technical specifications
- Lifting capacity (double circuit): 200 - 800 kg
- Tilting range: 90° with 6 locking positions
- Rotation range: 360° with 4 locking positions
- Machine weight: 55 - 80 kg
- Type: multifunctional glass suction lifter (spider)
