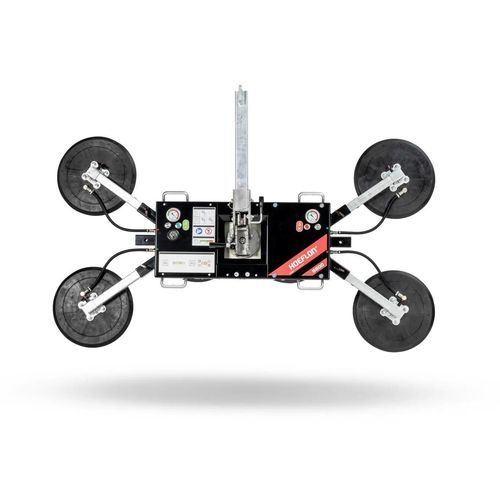

Heavy load vacuum lifting device S600

for flat partsfor platesfor sheets

Overview
The S600 is a portable vacuum lifter for handling glass and other heavy loads. It features a double vacuum system as standard and is configured for single-person operation; the unit can be moved on the supplied transport trolley.

Applications

• Handling and installation of glass panes, curtain walling and windows
• Loading/unloading of heavy panels and sheets
• On-site assembly where single-operator handling is required

Accessories (supplied as standard)

• Remote control
• Transport trolley
• Long lifting arm
• Short lifting arm
• Swappable battery system including spare battery
• Protective covers for suction cups

Technical specifications

• Lifting capacity (double-circuit): 200 - 600 kg
• Tilting range: 90° with 6 locking positions
• Rotation range: 360° with 4 locking positions
• Machine weight: 50 - 70 kg
• Standard double vacuum system
• Designed for single-operator use and transport on trolley
